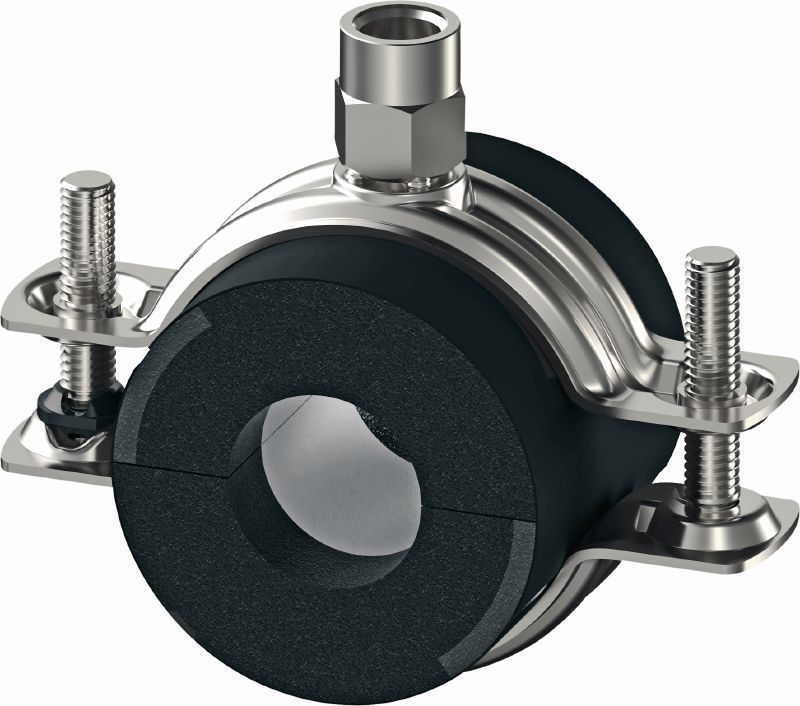

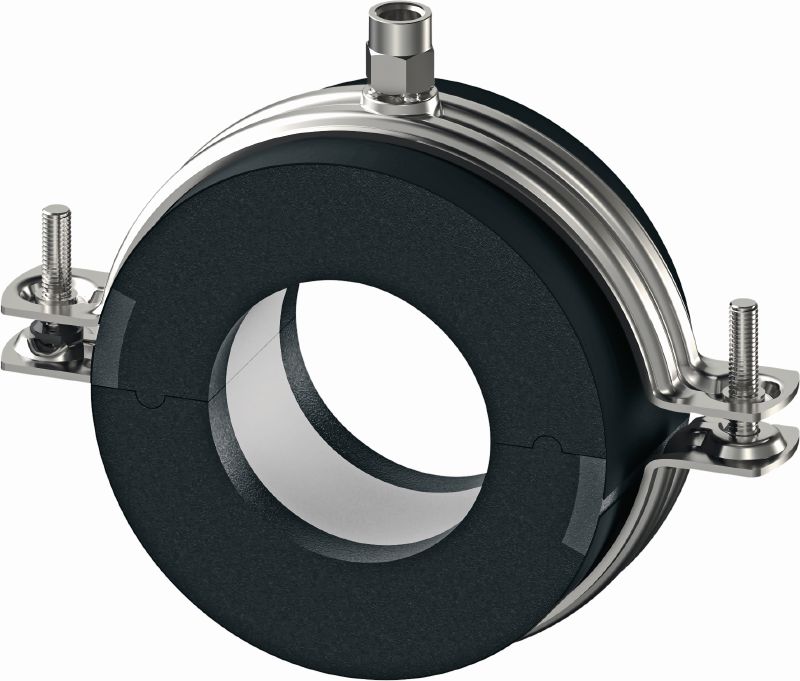

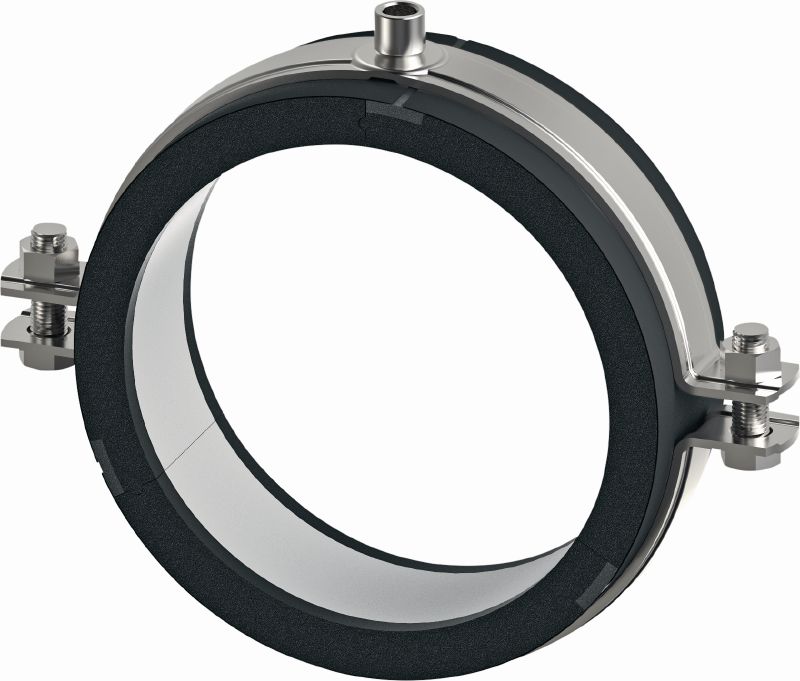

MRP-C Refrigeration pipe clamp
Premium galvanised pipe clamp for securing cold water and refrigeration pipes with a variety of insulation thicknesses
- Approvals: Acoustic insulation DIN 4109 inspected
- Noise reduction: 22.7 dB (A)
- Temperature resistance: -40 - 105 °C
premium
Choose options
Thickness - T
- 13 mm
- 19 mm
- 25 mm
- 32 mm
Diameter - D
- 10.2 mm
- 12 mm
- 13.5 mm
- 15 mm
- 15.8 mm
- 17.2 mm
- 18.2 mm
- 20 mm
- 21.3 mm
- 22 mm
- 25 mm
- 26.9 mm
- 28 mm
- 32 mm
- 33.7 mm
- 35 mm
- 40 mm
- 42.4 mm
- 48.3 mm
- 50 mm
- 54 mm
- 57 mm
- 60.3 mm
- 63.5 mm
- 64 mm
- 66.7 mm
- 75 mm
- 76.1 mm
- 88.9 mm
- 90 mm
- 104 mm
- 108 mm
- 110 mm
- 114.3 mm
- 125 mm
- 128 mm
- 133 mm
- 140 mm
- 154 mm
- 160 mm
- 168.3 mm
- 180 mm
- 200 mm
- 204 mm
- 219.1 mm
Thread connection - M
- M16
- M8, M10
Pack size
- 2 pc
- 4 pc
- 6 pc
- 10 pc
- 20 pc
- 50 pc
Quantity
Packs
Total Pieces
1
Discounted net
From £107.00
Technical Data
Approvals
Acoustic insulation DIN 4109 inspected
Noise reduction
22.7 dB (A)
Temperature resistance
-40 - 105 °C
Material composition

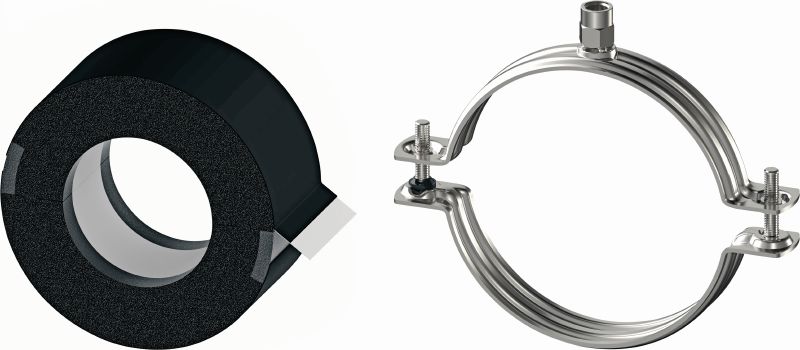

Closed-cell CFC-free polyisocyanurate (PIR) foam, flexible elastomer foam, outside PVC foil with vapour barrier layer
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Product class
Premium
Diffusion resistance
≥ 7000
Thermal conductivity (λ approx. value)
0.034 W/mK
Compressive strength
1.2 N/mm²
Approx. density
120 kg/m³
Documents
Features & Applications
Features

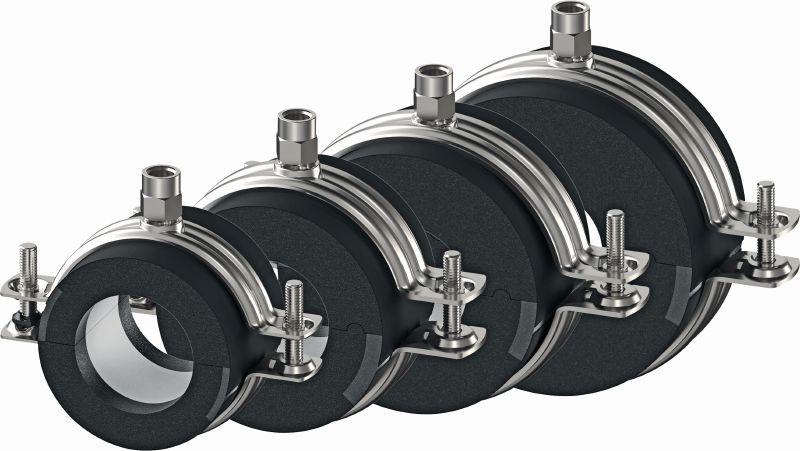

- Wide range of insulation thicknesses – compatible with insulation thicknesses of 13, 19, 25 or 32 mm with joint-to-pipe insulation material (elastomeric caoutchouc)
- 360° mounting – load capacity achieved regardless of how core is rotated inside the pipe clamp
- Easy-release adhesive foil – allows for quick and simple installations, even while wearing gloves
- Moisture protection – thermal insulation helps to prevent condensation on the surface and the integrated vapour barrier foil helps to prevent condensation on the pipe
- Compensation feature helps to prevent buckling and lifting of the outer foil when closing the pipe clamp
Applications

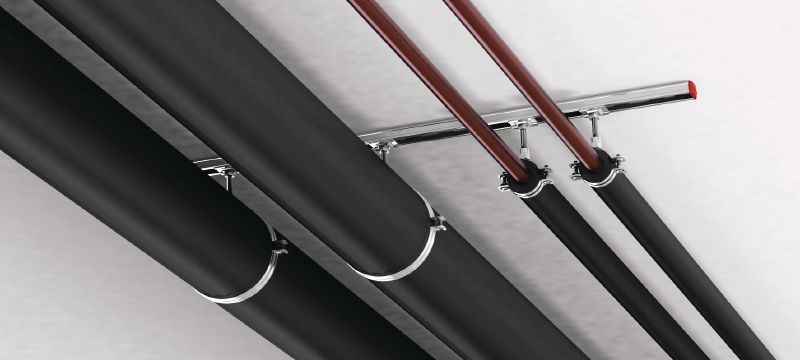

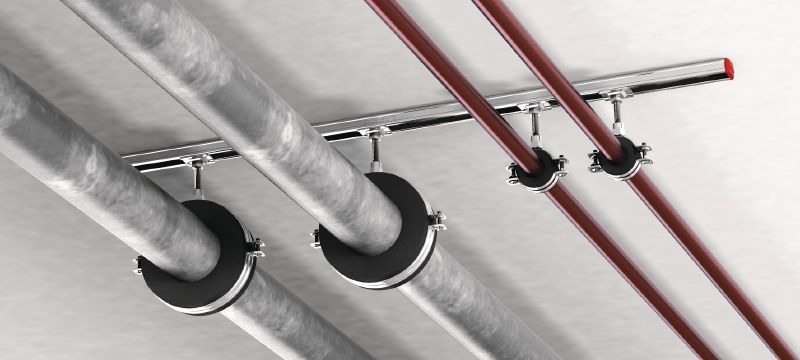

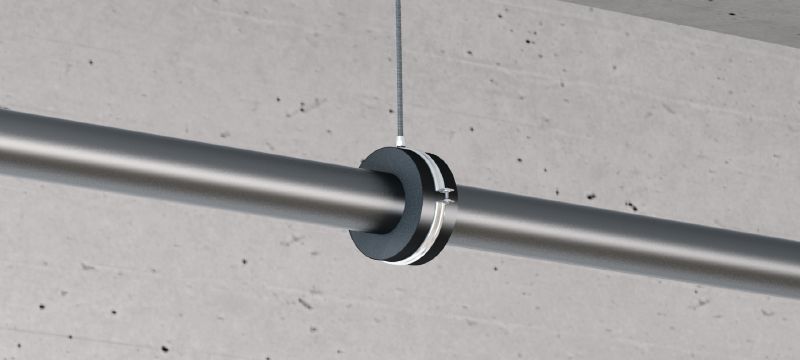

- Fastening cold water and refrigeration pipes up to 219 mm diameter
- Refrigeration and air-conditioning pipe mounting with pipes of various materials
- Recommended for use in dry, indoor environments
For approval or certificate information, please see individual items.
