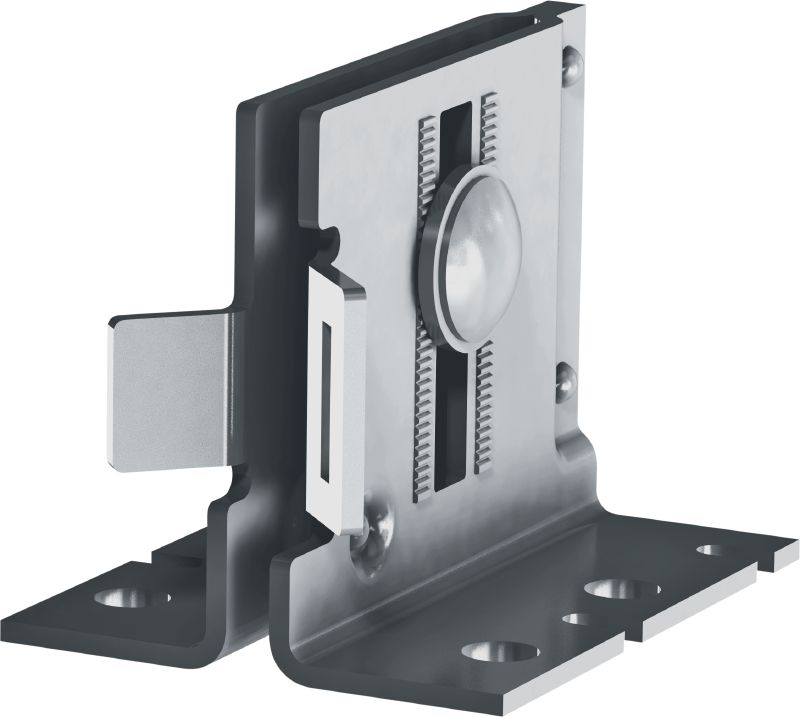

MP-PS Weldable pipe shoe

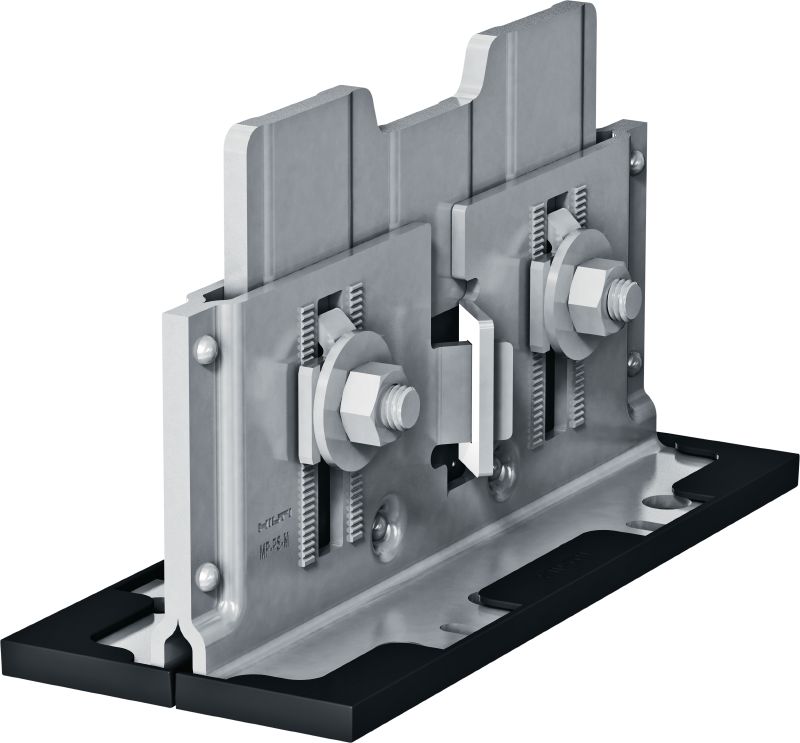

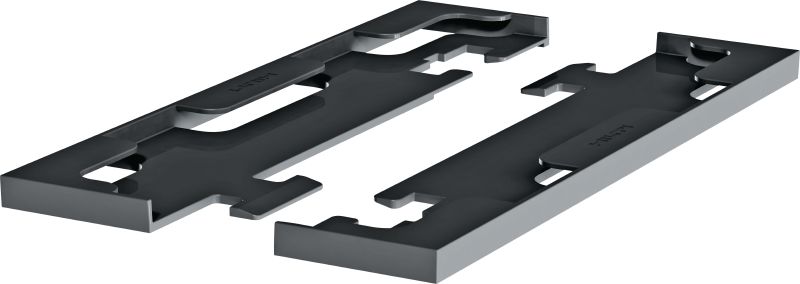

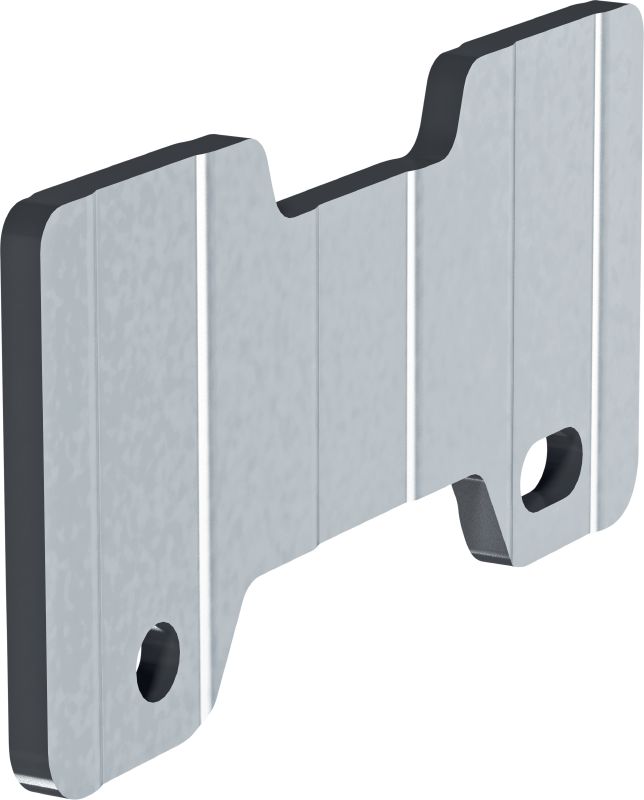

Slider plate MP-PS SP-2 #2368739

Configurator
Technical Data
Documents
Features & Applications
Related Products
CG003834_v1 (2842619)
CG003875_v1 (2842849)
CG003839_v4re (2842682)
CG003840_v3 (2842690)
CG003838_v2re (2842655)
CG003835_v1 (2842624)
CG003836_v1 (2842633)
LCG003837_v4_cropped (2843431)
MP-PS M2-WS NC with dimensions (2859547)

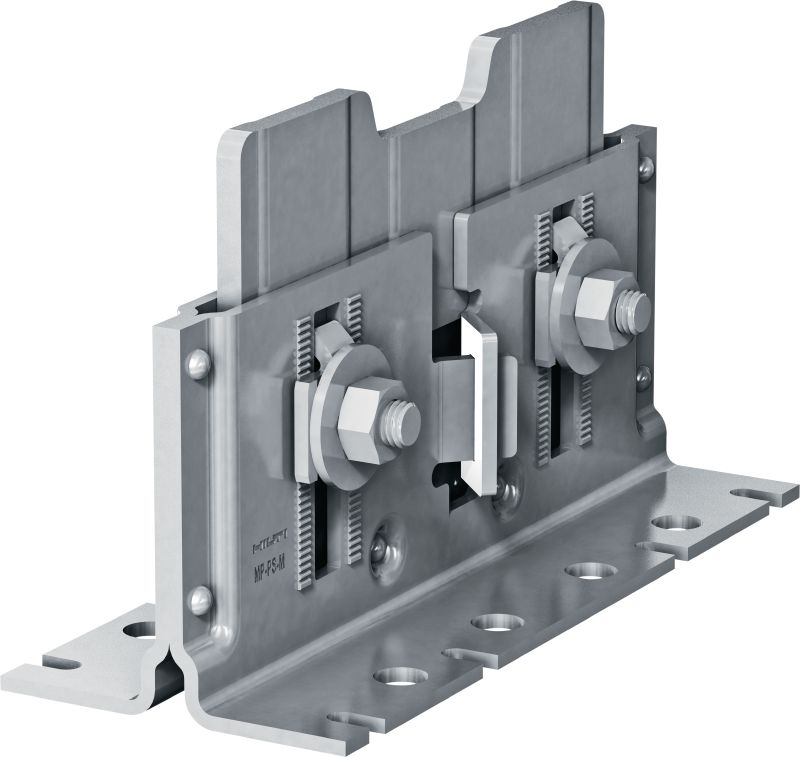

Pipe shoe with weldable pipe interface and height and slope adjustability in heavy industrial applications with outer pipe diameters of 21-328 mm (1/2" to 12")

  • Fire resistance (yes/no): No
  • Temperature resistance: -40 - 150 °C
  • Material composition: Base-plate: S280GD / Modif POSMAC-C, Middle-plate: S235JR - DIN EN 10025, Sliding-plate: PA66 + GF30, Bolt: Steel grade 8.8, Nut: Steel grade 8

Choose options

Pack size
  • 4 pc
 Product options
Quantity
Packs
Total Pieces
4
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
£24.36
£6.09
/
1 Piece

Technical Data

Details
Technical illustrations
Fire resistance (yes/no)
No
Temperature resistance
-40 - 150 °C
Material composition
Base-plate: S280GD / Modif POSMAC-C, Middle-plate: S235JR - DIN EN 10025, Sliding-plate: PA66 + GF30, Bolt: Steel grade 8.8, Nut: Steel grade 8
Material thickness
Base plate: 4 mm / 0.16 inches, Weldable plate: 7 mm / 0.28 inches, Sliding plate: 3 mm / 0.12 inches, Serrated washer: 4 mm / 0.16 inches
Surface finish
Base plate: ZM300, Weldable plate: non-coated
Hot-dip galvanized
Yes
Stainless steel
No
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Base material type
Concrete, Steel, Modular Support
Wrench size
19 mm
Tightening torque for height adjustment
50 Nm

Documents

Documentation
Sustainability Documentation
Operating Instruction
pdf Corrosion handbook, English [ 9.6 MB ]

Features & Applications

Features

  • One-for-all versatility – use the same pipe shoe system for fix-, slide-, guided- or freestanding supports to Hilti modular girders, steel beams and concrete
  • Extensive software support – simplify calculation by using PROFIS, Hilti FixPoint Calculator, BIM/CAD libraries and various plug-ins
  • Load data and documentation available – design according to EN13480-3, Eurocode 3 and MSS-SP58 guidelines for pipe support components
  • Quicker installation on-site – easily adjust the height and slope after pipe is welded to connector plate
  • Avoid hot work permit on site – weldable pipe connector can be prepared and welded in fab shop without any adjustability limitations on site

Applications

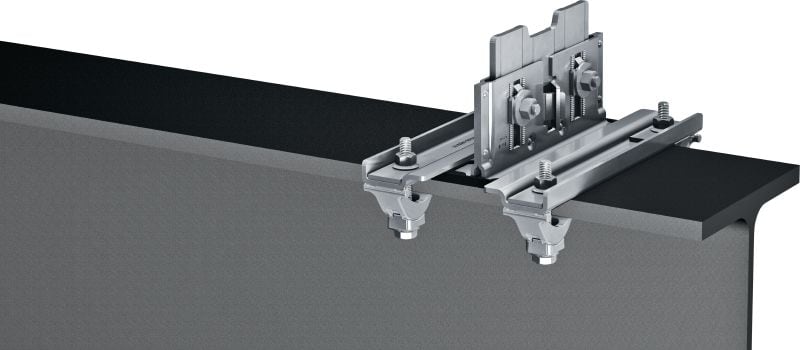

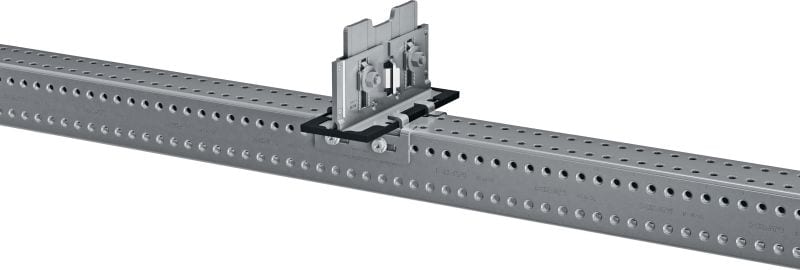

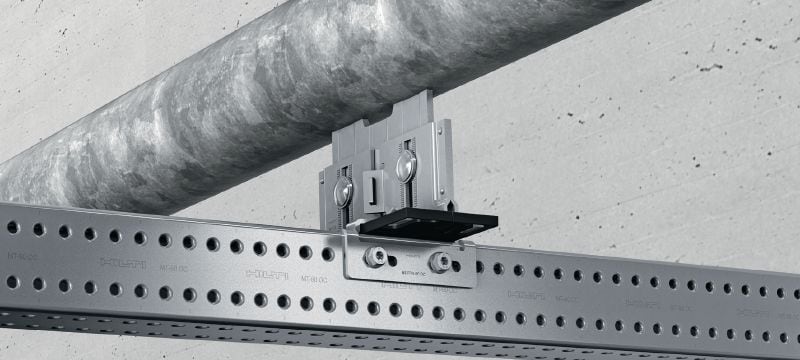

  • Fastening pipes to steel beams, concrete or Hilti modular support girders
  • Pipe installations in onshore industrial, power generation, pharmaceutical, electronics or automotive manufacturing facilities
  • Suitable for small-bore piping with temperatures of up to 300°C (572°F) and an insulation thickness of up to 162 mm (6")
  • Recommended for use in indoor or outdoor environments with low to moderate pollution (C3/C4 – low)
