MP-U-G Quick-close low friction pipe clamp

Configurator
Technical Data
Documents
Features & Applications
Related Products
LCG003646_v2 (1922189)
LCG003647_v2 (1922202)
LCG003651_v2 (1922159)
LCG003649_v2 (1922139)
LCG003652_v2_cropped (1922184)
LCG003653_v3_cropped (1922222)
IS_MP-U-G_00010 (229984)

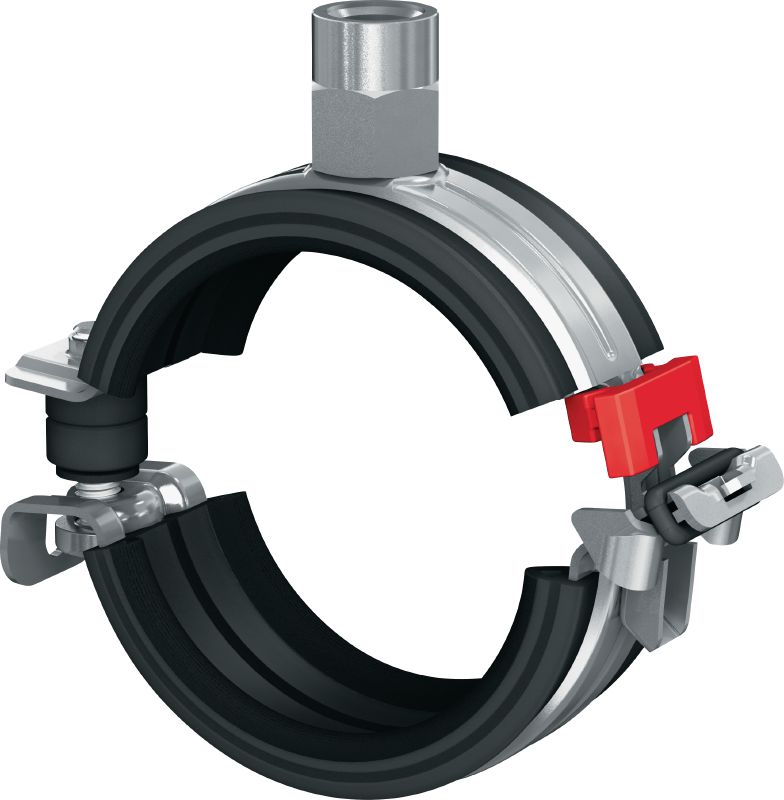

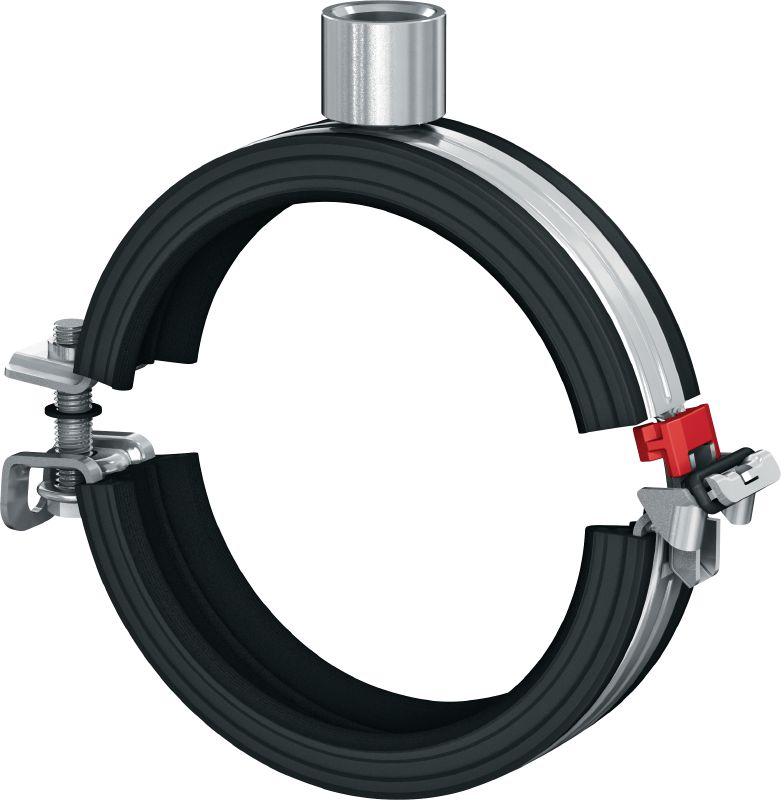

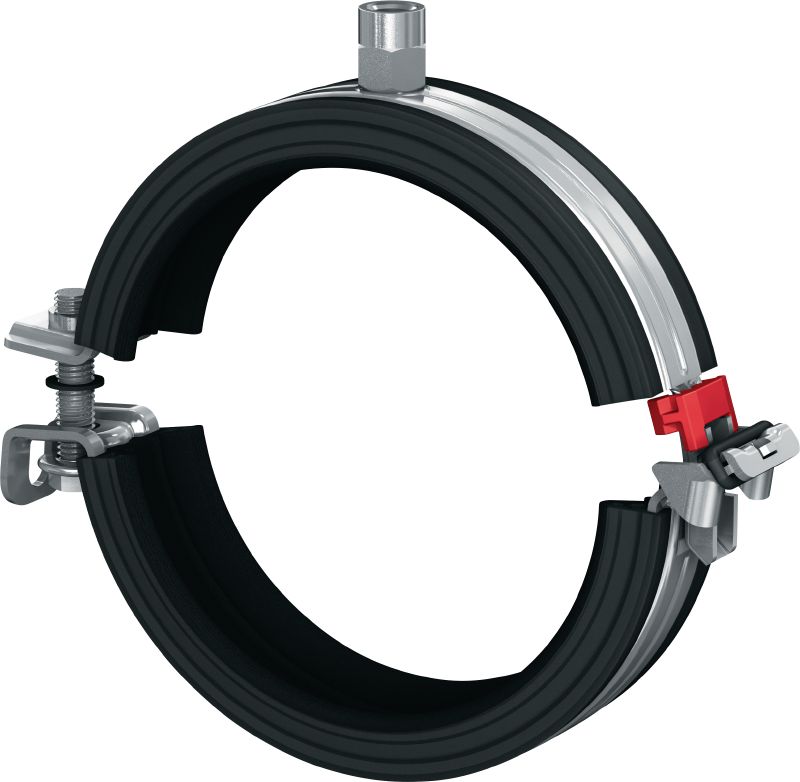

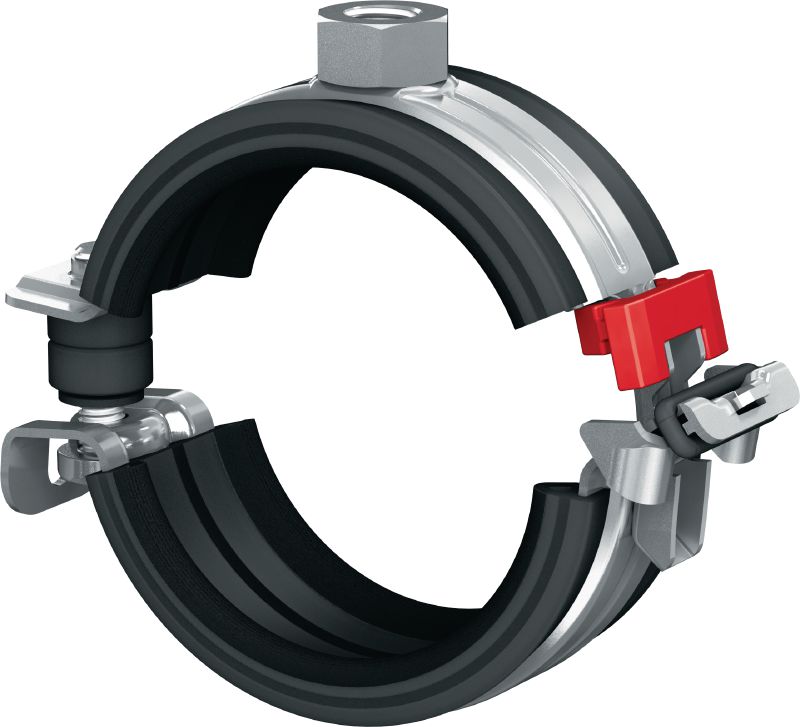

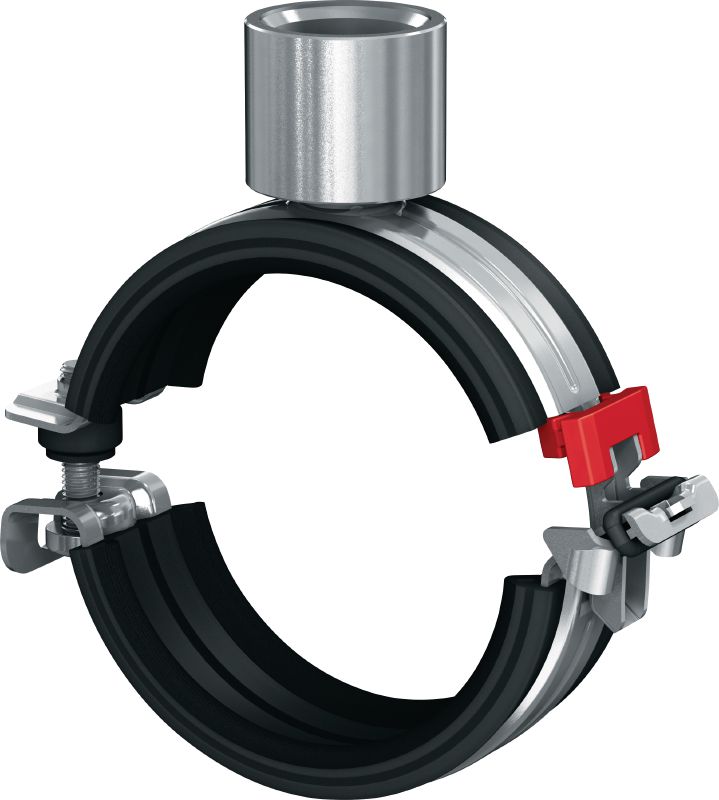

Galvanised pipe clamp with low friction inlay and quick closure for maximum productivity in medium-duty applications

  • Approvals: ETA, Fire class B2
  • Fire resistance (yes/no): No
  • Noise reduction: 22 dB (A)
ultimate

Choose options

Diameter - D
  • 16 mm
  • 20 mm
  • 25 mm
  • 32 mm
  • 40 mm
  • 50 mm
  • 56 mm
  • 63 mm
  • 75 mm
  • 90 mm
  • 110 mm
  • 135 mm
Thread connection - M
  • M8, M10
  • M8, M10, 1/2 in
Pack size
  • 10 pc
  • 25 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From £66.00

Technical Data

Details
Technical illustrations
Approvals
ETA, Fire class B2
Fire resistance (yes/no)
No
Noise reduction
22 dB (A)
Temperature resistance
-50 - 110 °C
Material composition
DC01 - DIN EN 10130, DD11 - DIN EN 10111
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Insulation material
EPDM rubber
Hardness insulation material
50° ±5° Shore A
Product class
Ultimate

Documents

Approval document
Documentation
Declaration of performance
Sustainability Documentation
Operating Instruction
pdf ETA 20/0952 MP-U-I, MP-U & MP-U-G (30.11.2022), English, German, French [ 6 MB ]
pdf Building material class B2 / Class E, English [ 116.5 KB ]

Features & Applications

Features

  • Safety quick closing mechanism – helps to make installation faster, easier and more reliable, especially overhead

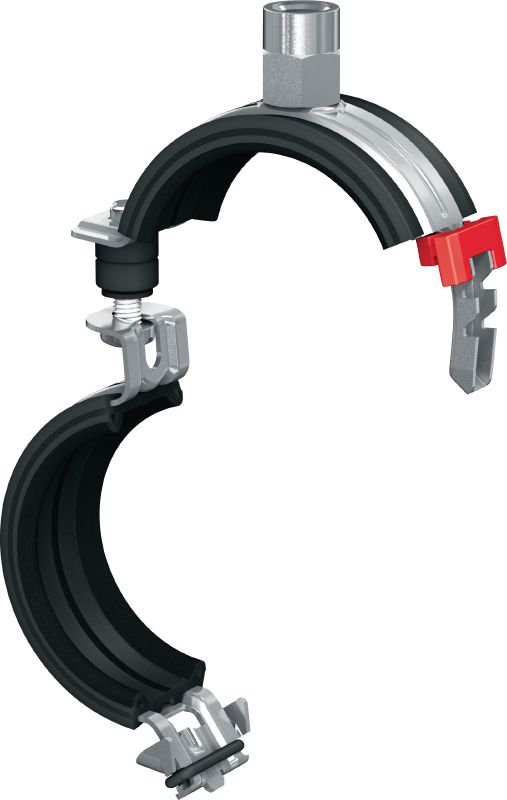

  • Extra-wide opening – pivoting half-ring gives you easier, unhindered access when inserting pipes into the pipe clamp
  • Pipe clamp diameters perfectly matched to diameters of plastic pipes and aluminium composite pipes
  • Specially designed rubber inlay with low-friction properties to allow pipes to slide
  • Removable plastic clip and spacer – easily switch from sliding (low-friction) to clamping (16-56 mm diameter pipe clamps only)

Applications

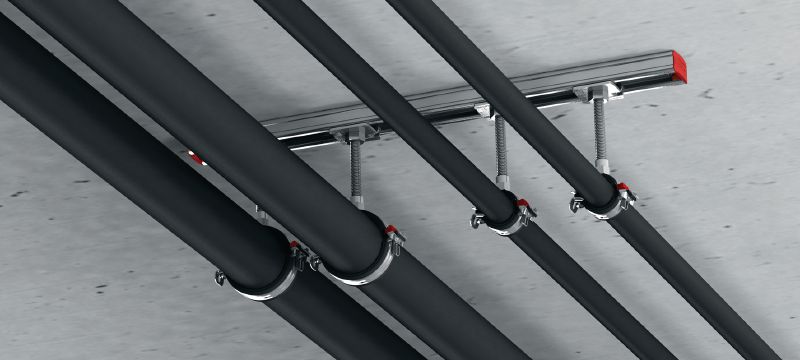

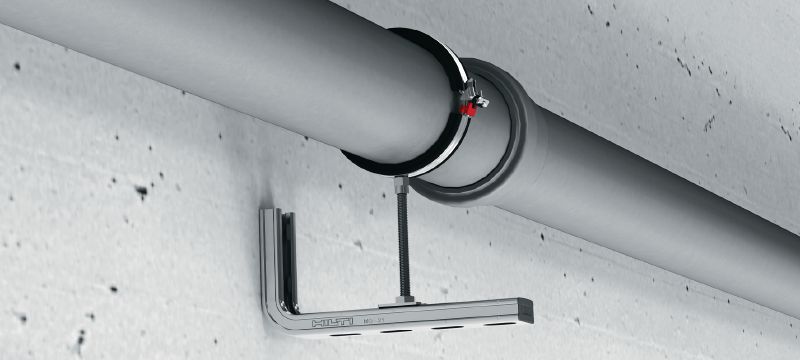

  • Fastening plastic pipes and aluminium composite pipes up to 160 mm
  • Installations which require low-friction pipe clamps
  • Recommended for use in dry, interior environments

For approval or certificate information, please see individual items.
