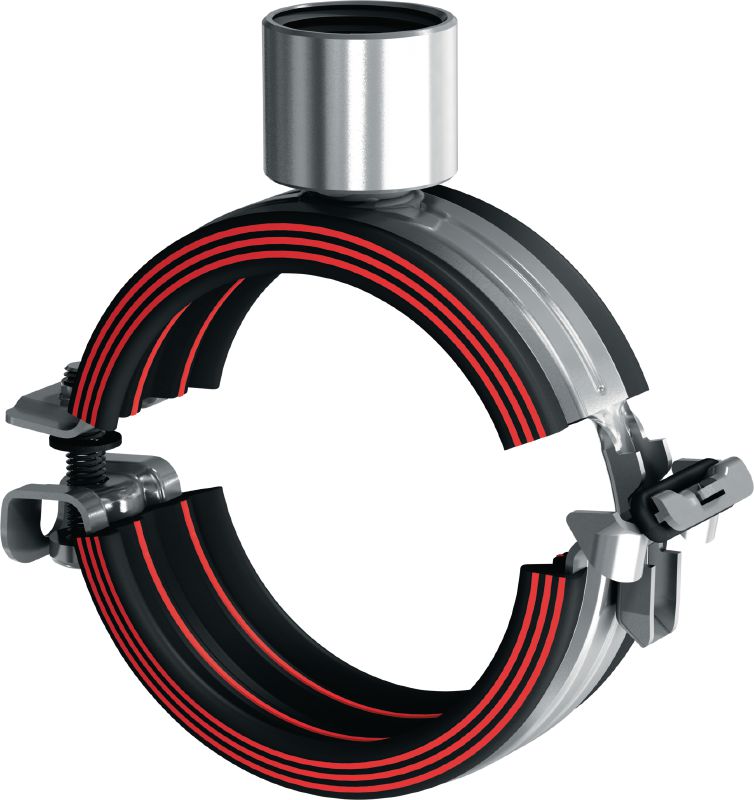

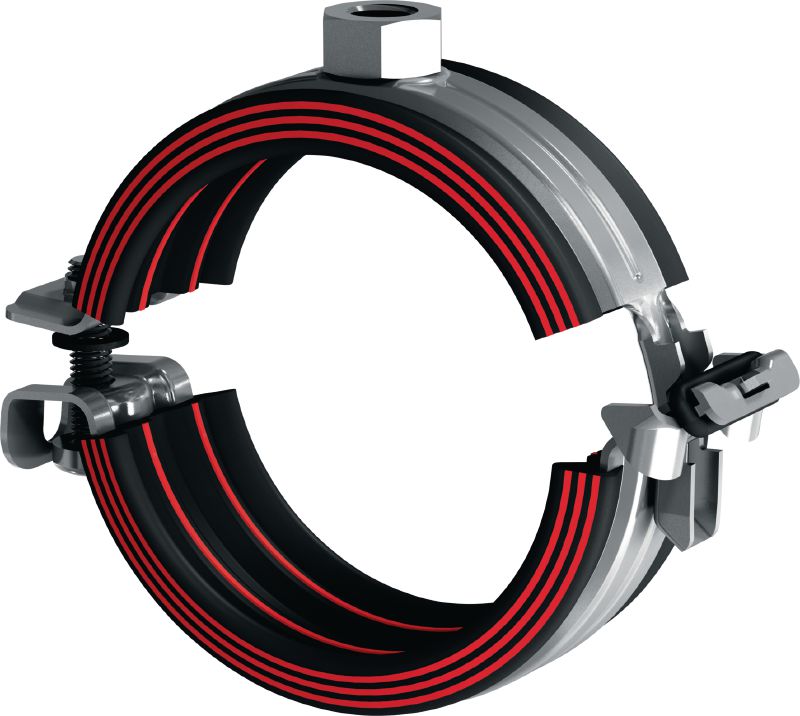

MP-U-I Quick-close pipe clamp
Galvanised pipe clamp with sound insulation and quick closure for maximum productivity in medium-duty applications
- Approvals: Acoustic insulation DIN 4109 inspected, Fire class B2
- Noise reduction: 19.4 dB (A)
- Temperature resistance: -40 - 110 °C
Choose options
Clamping range - D
- 13 - 17 mm
- 17 - 21 mm
- 21 - 25 mm
- 25 - 29 mm
- 29 - 33 mm
- 33 - 37 mm
- 37 - 42 mm
- 42 - 47 mm
- 47 - 52 mm
- 52 - 57 mm
- 57 - 62 mm
- 62 - 67 mm
- 67 - 72 mm
- 72 - 77 mm
- 78 - 84 mm
- 84 - 90 mm
- 90 - 96 mm
- 97 - 103 mm
- 103 - 109 mm
- 109 - 115 mm
- 115 - 121 mm
- 135 - 141 mm
- 154 - 160 mm
Thread connection - M
- M8, M10
Pack size
- 10 pc
- 25 pc
Quantity
Packs
Total Pieces
1
Discounted net
From £64.50
Technical Data
Approvals
Acoustic insulation DIN 4109 inspected, Fire class B2
Noise reduction
19.4 dB (A)
Temperature resistance
-40 - 110 °C
Material composition
DC01 - DIN EN 10130, DD11 - DIN EN 10111
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Insulation material
TPE (thermoplastic elastomer)
Hardness insulation material
59°/90° ±3° Shore A
Documents
Features & Applications
Features

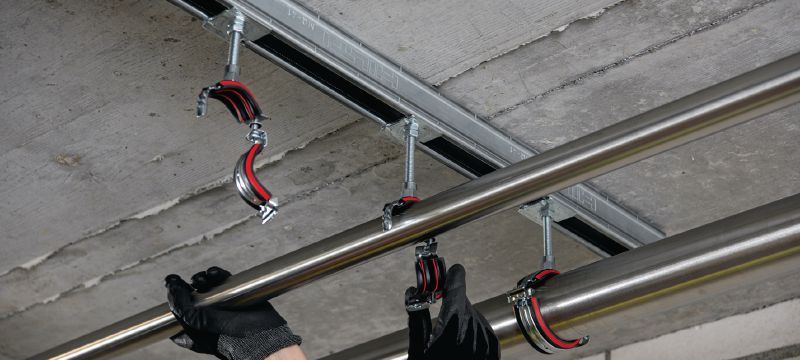

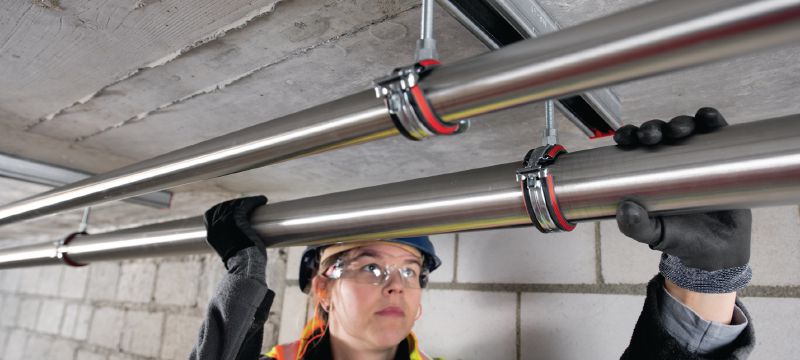

- Quick-closing safety mechanism – makes pipe installation faster, easier and more reliable, especially overhead

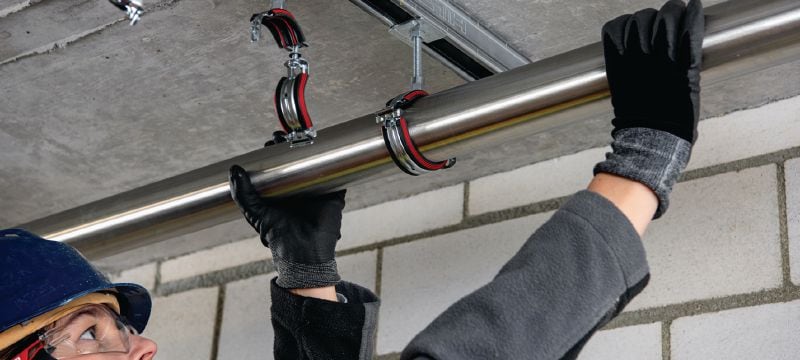

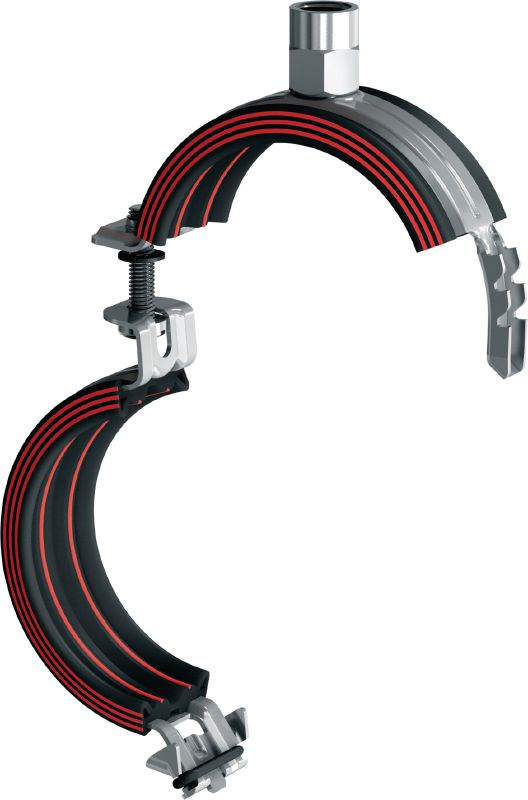

- Extra-wide opening – pivoting half-ring gives you easier, unhindered access when inserting pipes into the pipe clamp
- More flexibility – pipe clamps available with a variety of connection head options
- Complete clamping range – from the smallest to largest diameter across the entire product range
- Profiled rubber inlay with tested sound decoupling – more secure, low-friction surface for easier positioning of the pipe
Applications
- medium-duty pipe installations up to 6"

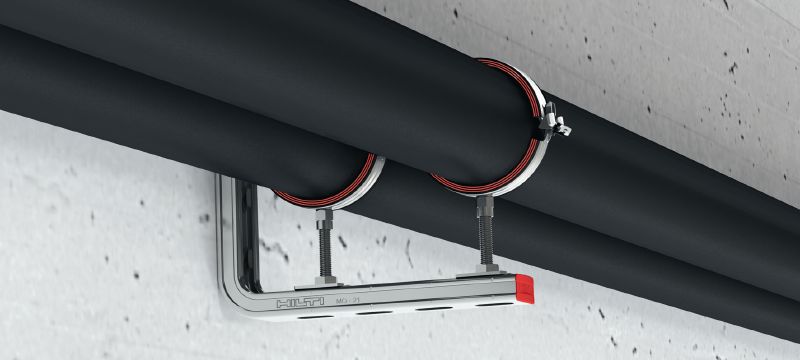

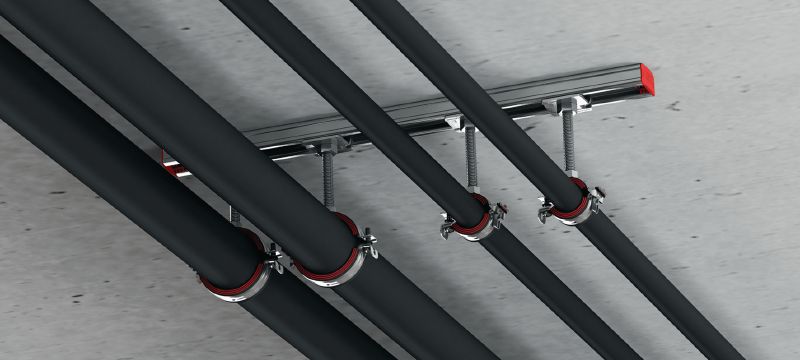

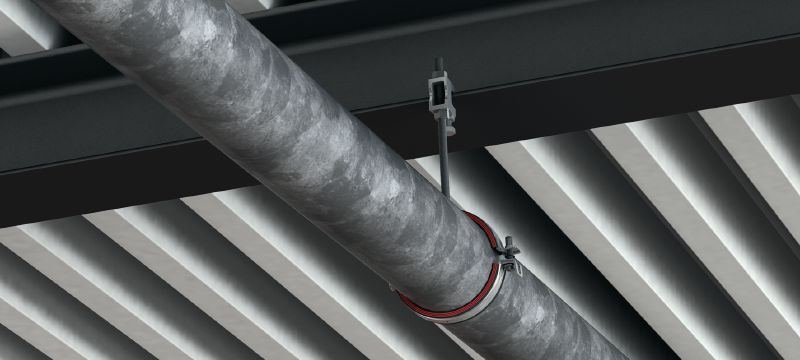

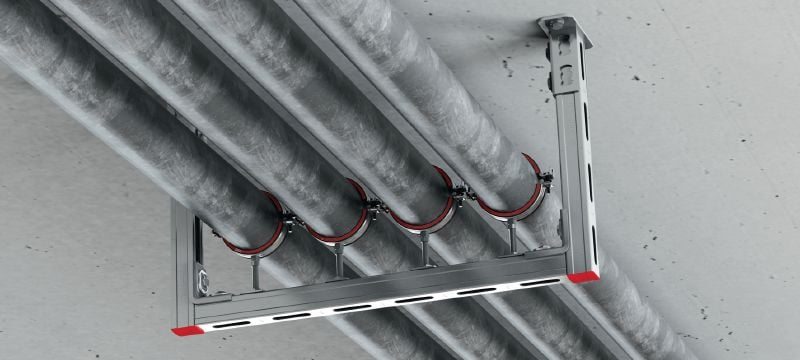

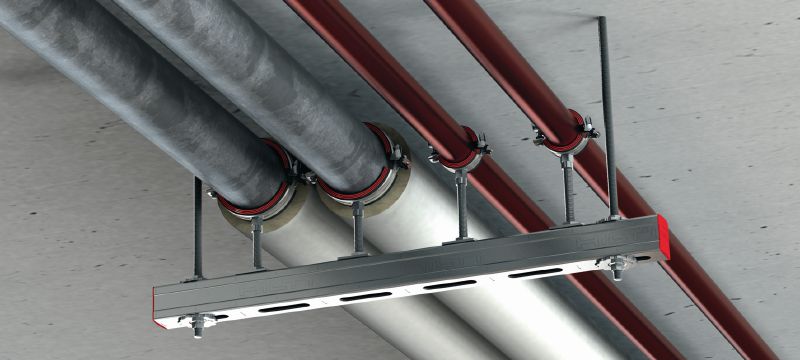

- Fastening fresh water, waste water, sanitary and heating pipes in residential and industrial construction
- Installing pipes in areas with fire safety requirements, such as escape and rescue routes
- Recommended for use in dry, interior environments

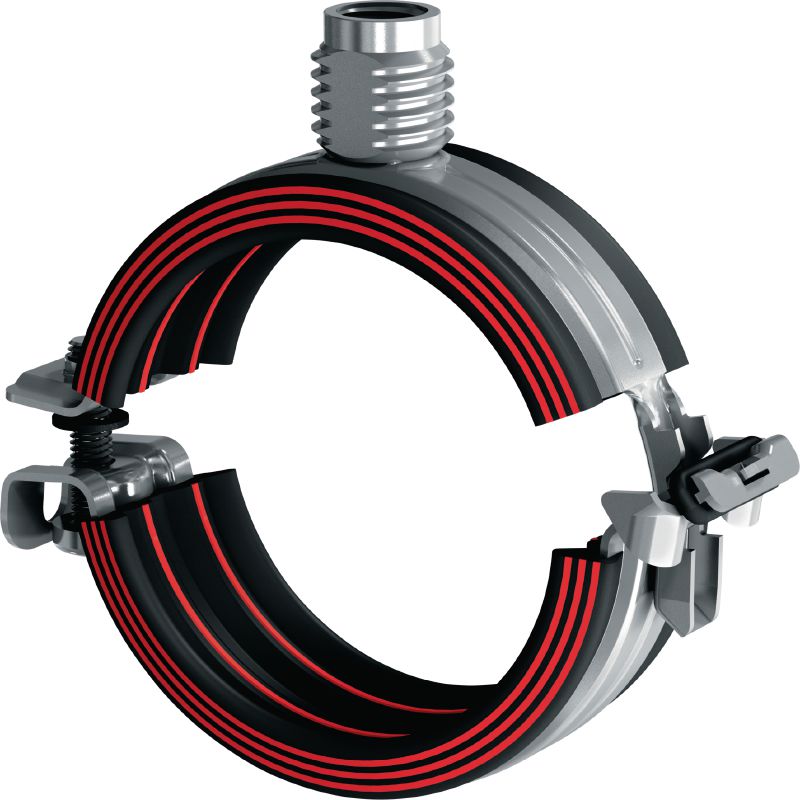

- Please note: externally threaded O16 versions require MP-GA thread adapters (available separately) for coupling to M16 threaded rods or ½" threaded pipes
For approval or certificate information, please see individual items.
