MQ-52 C-Channel profile

I.-Channel MQ-52 6m #369598

Configurator
Technical Data
Features & Applications
Related Products
MQ-52

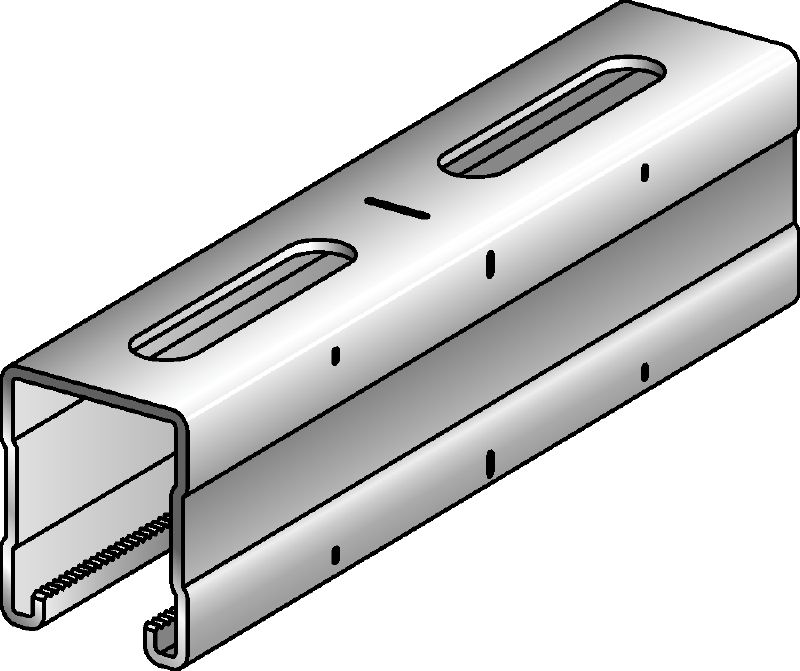

Galvanised C-Channel profile for medium-duty applications

  • Height: 52 mm
  • Material thickness: 2.5 mm
  • Material composition: S250GD - DIN EN 10346

Choose options

Length
  • 6 m
Pack size
  • 6 m
 Product options
Quantity
Packs
Total Pieces
6
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
£3,293.64
£78.42 / 1 m

Technical Data

Height
52 mm
Material thickness
2.5 mm
Material composition
S250GD - DIN EN 10346
Surface finish
Indoor Coated - Pre-galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Weight
17652 g

Features & Applications

Features

  • C-profile with serrated edges – for higher pull-out and shear capacity
  • Optimised hole pattern – for more flexible attachment options
  • Pre-marked dimensions – for rapid installation, assembly and cutting
  • Versatile and flexible due to modular channel system
  • Sound insulation elements available for all MQ installation channels

Applications

  • Recommended for installation in dry interiors
  • Modular support systems for piping
  • Modular support systems for air ducts and cable trays
  • Modular support systems for 3D structures
  • Wall-mounted installation
