MM-RI rubber inlay

Configurator
Technical Data
Features & Applications
Related Products
MM-RI
32527.tif
LCG001059_s.tif
32482.eps

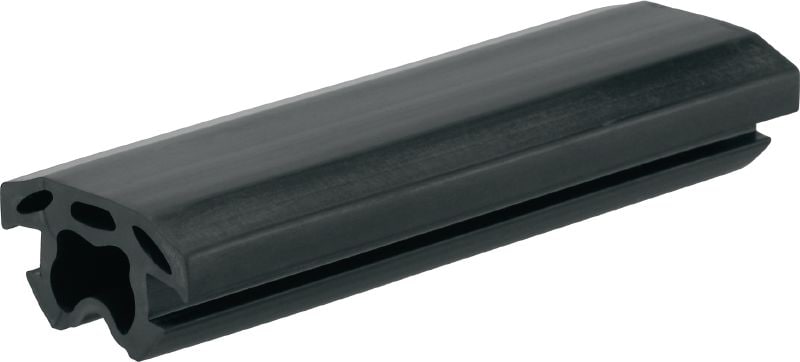

Channel rubber inlay for sound insulation

  • For use with: MM-C-16, MM-C-30, MM-C-36, MM-C-45
  • Material composition: EPDM
  • Temperature resistance: -40 - 110 °C

Choose options

Length
  • 0.1 m
  • 20 m
For use with
  • MM-C-16, MM-C-30, MM-C-36, MM-C-45
Pack size
  • 1 pc
  • 100 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From £129.00

Technical Data

Details

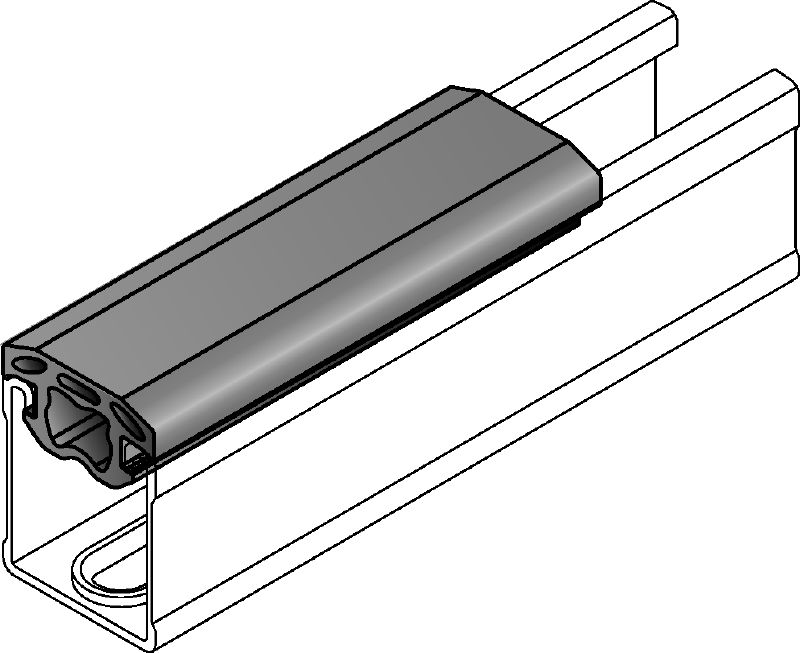

Technical illustrations
For use with
MM-C-16, MM-C-30, MM-C-36, MM-C-45
Material composition
EPDM
Temperature resistance
-40 - 110 °C
Noise reduction
13 dB (A)
Resistance
UV light, diluted acids and alkalis, alcohol solutions, water and water-based solutions
Ageing resistance
Tested as per DIN 53508 and 53509
Hardness insulation material
55° ±5° Shore A

Features & Applications

Features

  • Suitable for all three types of MM channel profiles and M8/M10 threaded rods
  • Prevents direct contact between the air duct and the channel
  • Large contact area between the channel insulation profile and the air duct avoids gearbox of vibration and structure-borne sound
  • Quick and easy installation in the channel
  • Suitable for all MM installation channel systems and M8/M10 threaded rods

Applications

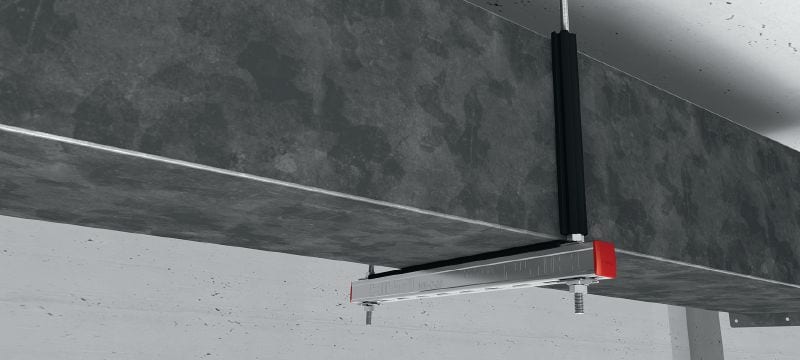

  • Acoustic insulation of MM channel air duct supports
  • Insulating layer between M8 and M10 threaded rods and the ventilation duct
  • Acoustic insulation element for use with the MM channel system in the installation of ventilation systems
  • For separating the items installed from the channel

For approval or certificate information, please see individual items.
