MSG-L 1,2 slide connector

Slide connector MSG-L 1,2 M8/M10 #2172050

Configurator
Technical Data
Documents
Features & Applications
Related Products

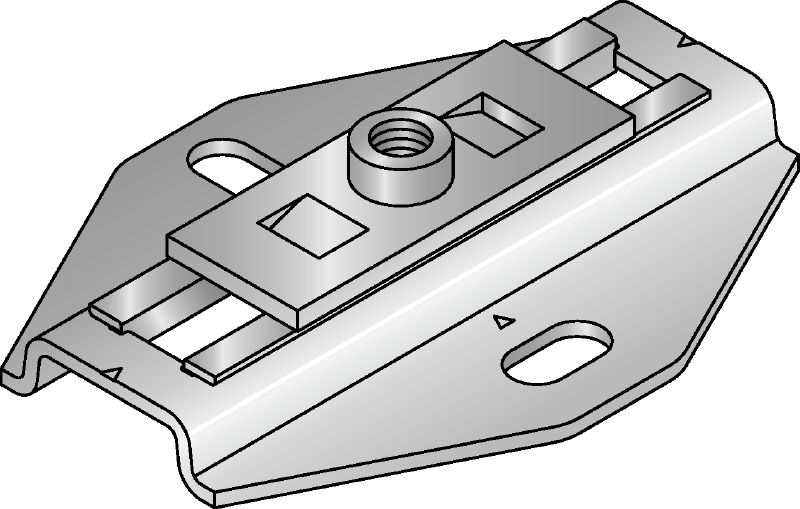

IS_MSG_1_2_0001_o (178581)

Galvanised slide connector for light-duty heating and refrigeration applications

  • Thread connection - M: M8, M10
  • Height - H: 27 mm
  • Maximum load - F: 1.2 kN

Choose options

Thread connection - M
  • M8, M10
Height - H
  • 27 mm
Maximum load - F
  • 1.2 kN
Pack size
  • 10 pc
 Product options
Quantity
Packs
Total Pieces
10
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
£1,310.00
£131.00 / 1 Piece

Technical Data

Thread connection - M
M8, M10
Height - H
27 mm
Maximum load - F
1.2 kN
Material composition
S275JR - EN 10025
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Temperature resistance
-40 - 130 °C
Base material type
Concrete, Steel, Wood
Max. displacement
60 mm
Coefficient of sliding friction
0.1
Weight
0.37 kg

Documents

pdf Operating Instruction MSG-L 1,2 M8/M10, Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Kazakh, Korean, Lithuanian, Latvian, Malay, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Sardinian, Slovak, Slovenian, Swedish, Thai, Turkish, Ukrainian, Vietnamese, Chinese, Serbian [ 592.2 KB ]

Features & Applications

Features

  • Can be used for suspended or standing installation applications
  • Load classes and capacities matched to Hilti pipe clamps
  • Stiffened base plate fits MQ modular support system
  • Smooth sliding movement on integrated plastic guide
  • Designed for use with the Hilti MP range of pipe rings

Applications

  • Mounting pipes subject to thermal elongation and contraction
  • single-point fastening of pipes or in combination with modular support systems
