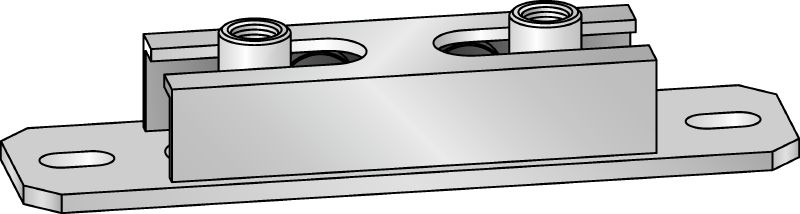

MRG-UK D6 Double cross roll connector

MRG-UK D6
MRG, MRG-UK
MRGD_Techndrawing_00336755.eps

Galvanised double cross roll connector for heavy-duty heating and refrigeration applications

  • Material composition: S235JR - DIN EN 10025
  • Surface finish: Indoor Coated - Electro galvanised
  • Environmental conditions: Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Choose options

Thread connection - M
  • M12, M16
Height - H
  • 45 mm
Maximum load - F
  • 6 kN
Pack size
  • 5 pc
 Product options
Quantity
Packs
Total Pieces
5
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
£2,145.50
£429.10
/
1 Piece

Technical Data

Material composition
S235JR - DIN EN 10025
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Temperature resistance
-40 - 300 °C
Base material type
Concrete, Steel, Wood
Coefficient of sliding friction
0.08

Documents

pdf  EPD_Pipe Fixation (Metal/Polym, English [ 2.1 MB ]

Features & Applications

Features

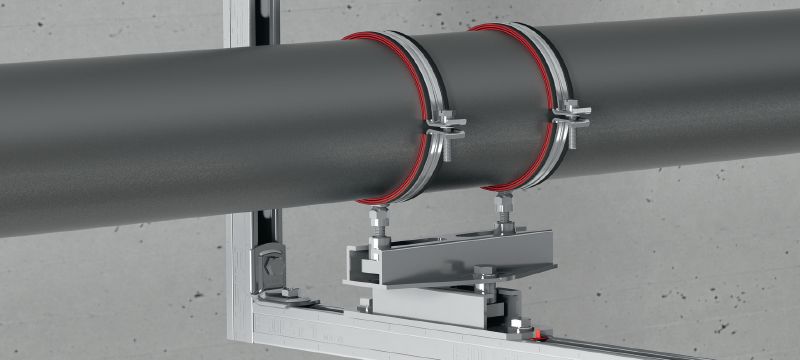

  • Facilitates horizontal 4-way movement in combination with MRG-D6 double roll connectors
  • Load classes and capacities matched to Hilti pipe clamps
  • Suitable for suspended or standing installation applications

Applications

  • Mounting pipes subject to thermal elongation and contraction
  • For use in combination with MRG-D6 double roll connector for cross slide applications
  • single-point fastening of pipes or in combination with modular support systems
  • Recommended for use in dry, interior environments

For approval or certificate information, please see individual items.
