MRG 2,0 roll connector

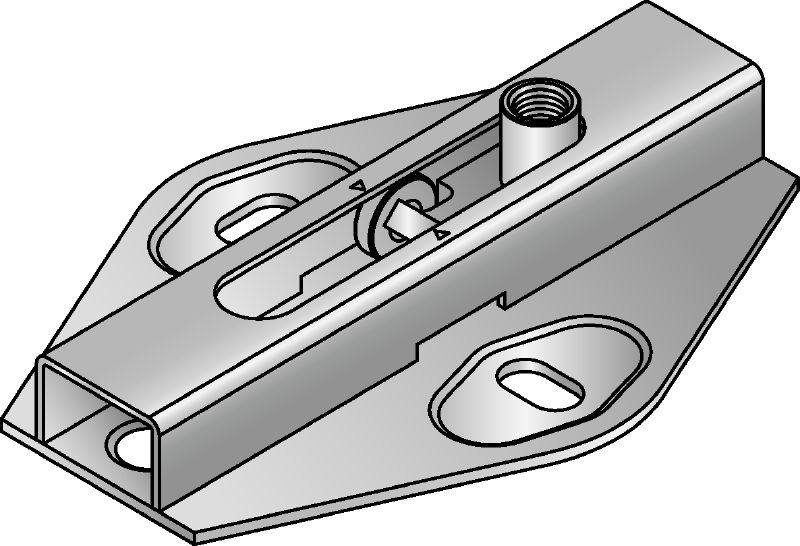

Roll connector MRG 2,0 M10/12 #243550

Galvanised roll connector for medium-duty heating and refrigeration applications

  • Thread connection - M: M10, M12
  • Height - H: 33 mm
  • Maximum load - F: 2 kN

Choose options

Thread connection - M
  • M10, M12
Height - H
  • 33 mm
Maximum load - F
  • 2 kN
Pack size
  • 5 pc
Product options
Quantity
Packs
Total Piece
5
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

£735.00

£147.00 / 1 Piece

Technical Data

Thread connection - M
M10, M12
Height - H
33 mm
Maximum load - F
2 kN
Material composition
S235JRG - DIN EN 10025
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Temperature resistance
-40 - 300 °C
Base material type
Concrete, Steel, Wood
Max. displacement
80 mm
Coefficient of sliding friction
0.08
Weight
0.68 kg

Documents

Features & Applications

Features

  • Suitable for suspended or standing installation applications
  • Load classes and capacities matched to Hilti pipe clamps
  • Stiffened baseplate fits MQ modular support system
  • Smooth rolling movement on coated runner in both directions in axial pipe direction
  • High temperature resistance up to 300°C – no plastic parts

Applications

  • Mounting pipes subject to thermal elongation and contraction
  • single-point fastening of pipes or in combination with modular support systems
  • Recommended for use in dry, interior environments
