Nuron

PR 40-22 Single slope rotating laser level

Rotating laser PR 40-22 #2399578

Configurator
Technical Data
Documents
Features & Applications
Related Products
Services
L133761 (3551198)
L150948_cropped (3551605)
L150986_cropped (3551609)
L151012_cropped (3551611)
L151930_cropped (3620787)
L151972_cropped (3620850)

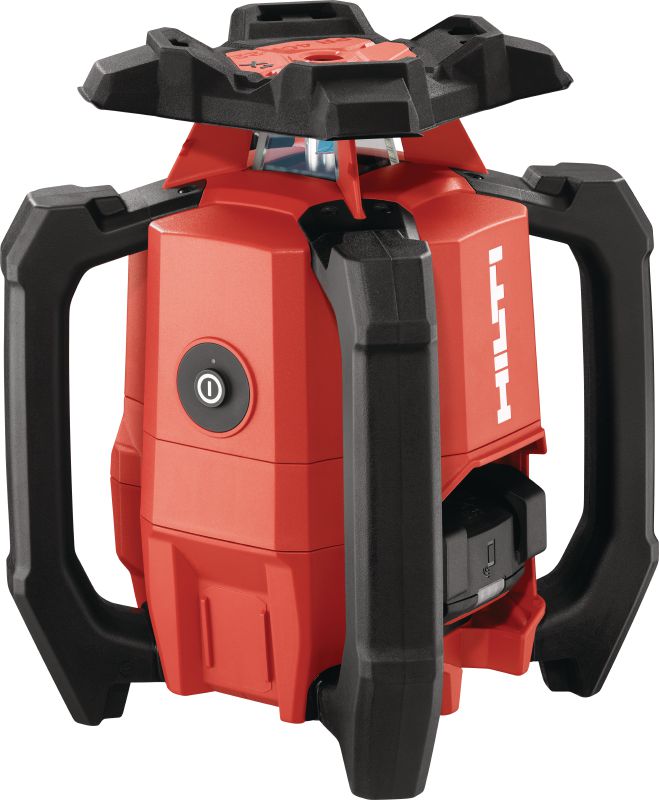

Robust exterior rotary laser level with automatic functions for long-distance leveling, aligning, sloping and squaring (Nuron battery platform)

  • Accuracy: ±1.5 mm at 30 m
  • Laser class: <4.85 mW, 620-690 nm, Class 2 (EN 60825), Class II (FDA CFR 21 art. 1040)
  • Self-levelling range at room temperature: ±5(± 8.7%) °

Customise your kit

Tool body
Tool body with case Includes: 1x Remote contr./laser rec. PRA 400, 2x Battery AA (2) alkaline, 1x Laser receiver holder PRA 83, 3x Clip PR 40-22 printed, 1x Tool case PR 4x-22 assy
How many kits do you want to order?
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
£1,649.00

Technical Data

Accuracy
±1.5 mm at 30 m
Laser class
<4.85 mW, 620-690 nm, Class 2 (EN 60825), Class II (FDA CFR 21 art. 1040)
Self-levelling range at room temperature
±5(± 8.7%) °
Rotation speed
300, 600, 1000 rpm
IP protection class
IP 66 (EN 60529) - battery compartment excluded
Operating temperature range
-20 - 50 °C
Maximum operating time
35 h

Documents

Approval document
Operating Instruction
pdf 2412748_PR_40_web [ 1.5 MB ]

Features & Applications

Features

  • Easy to use – one button design enables one-person operation, allowing you to set automatic functions within 300m (diameter)
  • 2-in-1 laser remote/receiver – universal PRA 400 detects rotating laser beams up to 800m, displays digital offset values and controls automatic functions of your rotary laser, helping you complete advanced layouts
  • Faster workflows – automatic vertical alignment, digital slope entry and cheque slope features help simplify and speed up your layout applications
  • Durable and drop-resistant – new aluminium core, internal dampers, shock-absorbing head/handles and IP66 rating to help maintain laser accuracy in rough jobsite conditions
  • Smarter features with Nuron – smart asset tracking, battery life indication and all on one battery platform help keep your tool park streamlined and cost-efficient

Applications

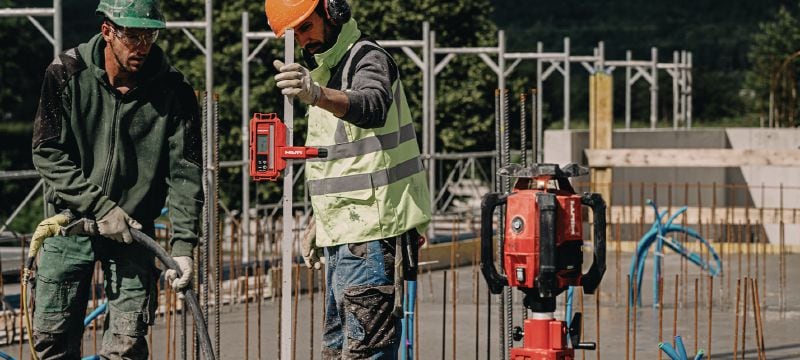

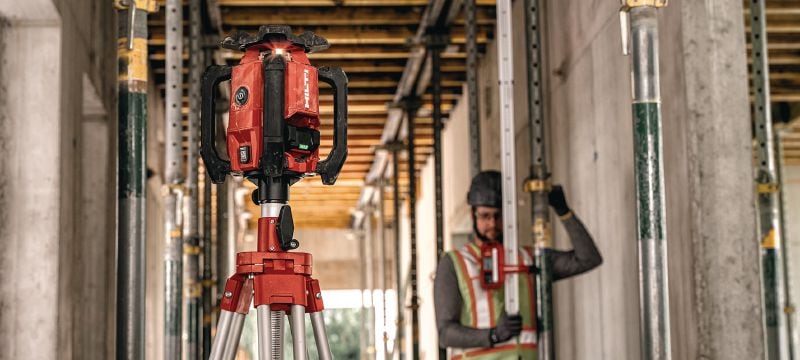

  • Horizontal leveling – formwork, concrete pours, excavation, height transfer etc.

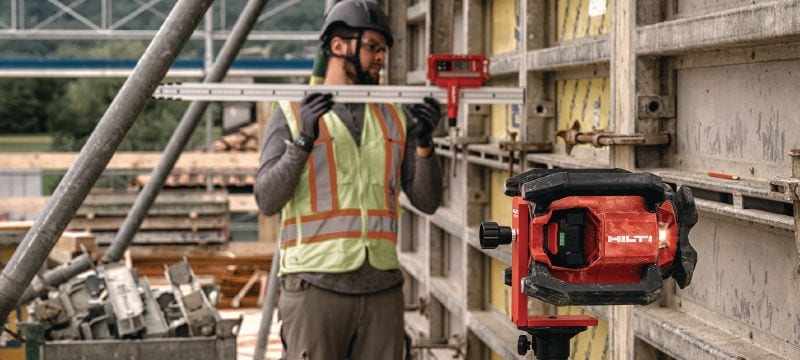

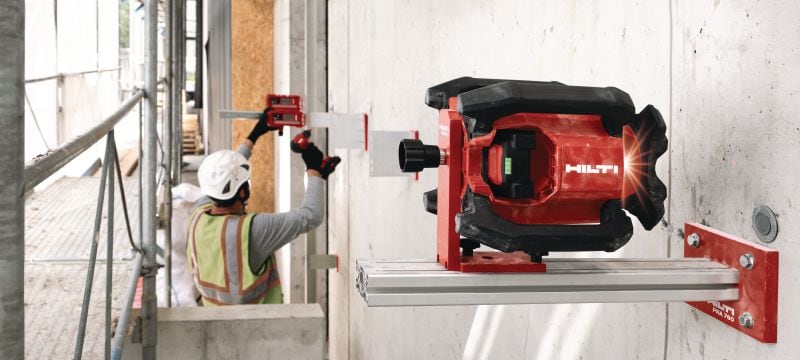

  • Vertical aligning – transferring building queues, aligning columns, façades, vertical formwork, etc.

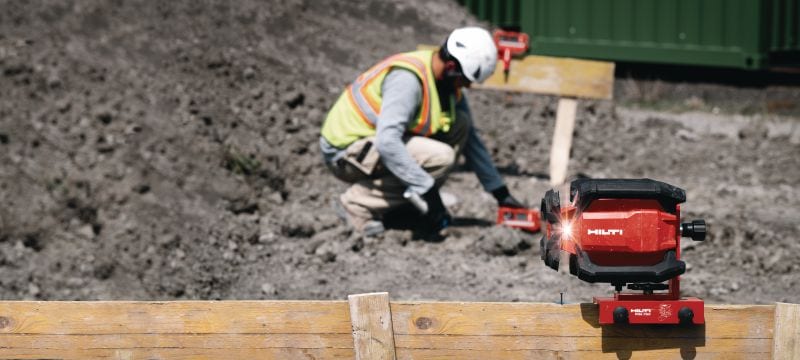

  • Slope/ grading for ramps, car parks and pipes
  • Squaring for formwork applications

Services

Fleet Management

  • Individual labels and online visibility provide tool fleet transparency
  • Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
  • High-performing tools and latest technology help to increase jobsite productivity.
