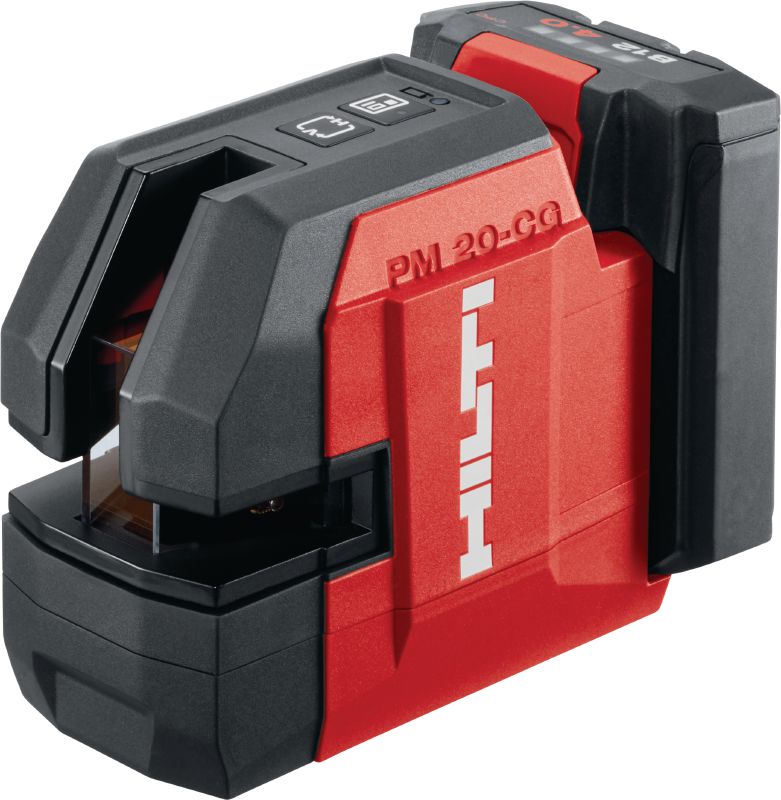

PM 20-CG 12V Plumb and cross line laser

Combilaser PM 20-CG A12 #2322752

Configurator
Technical Data
Documents
Features & Applications
Related Products
L125945 (1932422)
L142440 (228397)
L142461 (228400)
L142473_cropped (228401)

Green beam combi-laser with 2 queues and 4 points for plumbing, leveling, aligning and squaring (12V battery platform)

  • Accuracy: ±3 mm at 10 m
  • Max. operating distance (diameter): 40 m (lines), 100 m (lines, with receiver)
  • Maximum operating time: 33 h

Customise your kit

Tool body
Tool body with cardboard box Includes: 1x Magnetic bracket PMA 89, 1x Toolbag PMA 64
How many kits do you want to order?
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
£974.00

Technical Data

Accuracy
±3 mm at 10 m
Max. operating distance (diameter)
40 m (lines), 100 m (lines, with receiver) 1
Maximum operating time
33 h
Battery type
12 V
Self-levelling range at room temperature
+/-4 °
Self-levelling time
3 s
Horizontal fan angle
200 °
Vertical fan angle
160 °
IP protection class
IP 54 (EN 60529)
Laser type
Line and point
  1. Operating distance can be significantly affected by site conditions. See operating instructions.

Documents

pdf Operating Instruction PM 20-CG(E), PM 20-CG A12, Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Kazakh, Korean, Lithuanian, Latvian, Malay, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Sardinian, Slovak, Slovenian, Swedish, Thai, Turkish, Ukrainian, Vietnamese, Chinese, Serbian [ 15 MB ]

Features & Applications

Features

  • High-speed layout – compact, self-levelling cross line laser with magnetic bracket so that you can get started with minimal setup time
  • Up to 5 days of continuous layout work per charge – powered by the same longer-lasting batteries as your other Hilti 12V tools
  • Ultimate versatility – laser cross, four dots and slope mode make this line laser level suitable for virtually all alignment and layout work, even on inclines
  • Better visibility up to 20 m – equipped with green beam for easier use indoors and in bright light
  • Built for jobsite conditions – IP 54 rated protection against dust and moisture and class 2 laser which requires no special precautionary measures

Applications

  • Aligning pipes, cable trays, lighting and drywall track
  • Leveling power outlets, cable trays, radiators and pipe installations
  • Aligning and leveling doors, windows and handrails
  • Transferring track positions and fastening points from floors to ceilings (laser plumb bob)
  • Transferring reference heights
