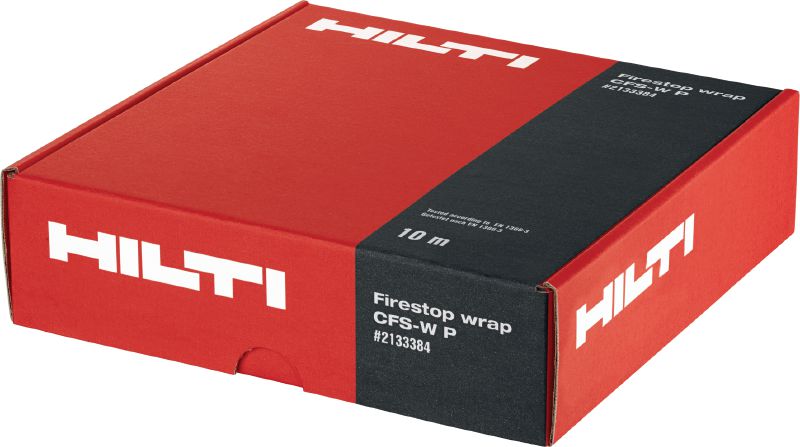

CFS-W P Firestop premium wrap

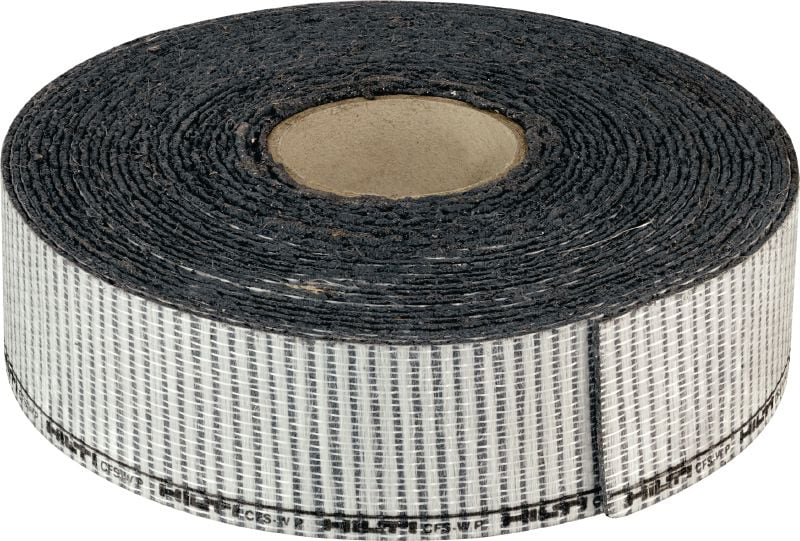

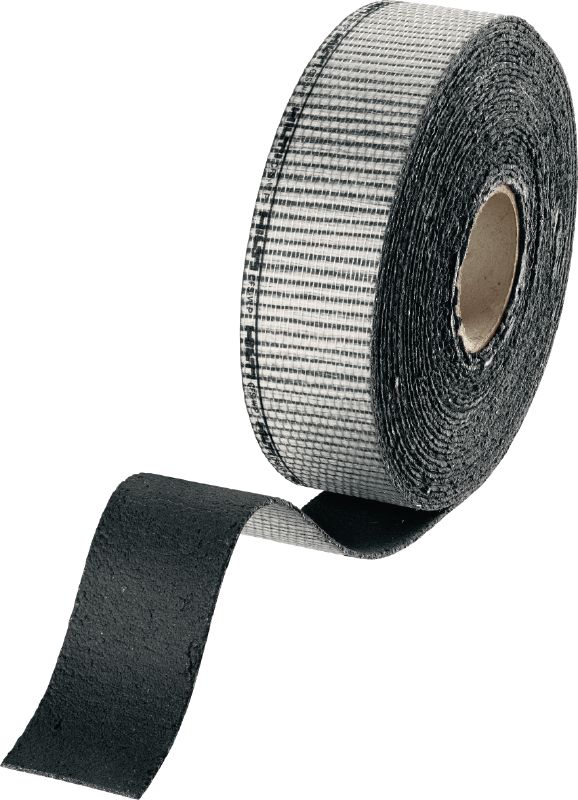

Firestop wrap strip CFS-W P #2133384

Configurator
Technical Data
Documents
Features & Applications
Related Products
Wrap CFS-W P (78918)
Wrap CFS-W P (78917)
L139989_cropped (208562)

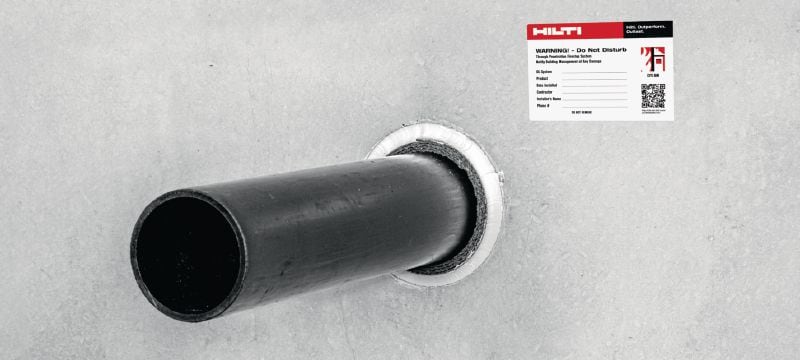

Firestop premium wrap to help create a fire and smoke barrier around combustible pipes in most common base materials, including coated board

  • Dimensions (LxWxH): 10000 x 50 x 2 mm
  • Base materials: Concrete, Drywall, Masonry
  • LEED VOC: 0 g/l
ultimate

Choose options

Width
  • 50 mm
Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
£288.40
£288.40 / 1 Piece

Technical Data

Dimensions (LxWxH)
10000 x 50 x 2 mm
Base materials
Concrete, Drywall, Masonry
LEED VOC
0 g/l
Can be painted
No
Length
10000 mm
Height
2 mm
Product class
Ultimate
Application temperature range
-5 - 50 °C
Temperature resistance range
-20 - 100 °C
Application
Other

Documents

Approval document
Technical information
Declaration of performance
Sustainability Documentation
Operating Instruction
pdf ETA-20/0989 for CFS-W P firestop wrap strip for penetrations (updated application scope), English [ 2.4 MB ]

Features & Applications

Features

  • Approved for a increased range of combustible pipe and insulation materials in coated board applications
  • All pipes tested with end configurations meeting code requirements for the application
  • Efficient – quicker and easier installation without anchors or drilling
  • Endless solution – one product for most penetrant sizes

Applications

  • Waste water, roof drainage, potable water and refrigeration pipes in board applications
  • Waste water and roof drainage pipes in drywall, aerated concrete, masonry and concrete
