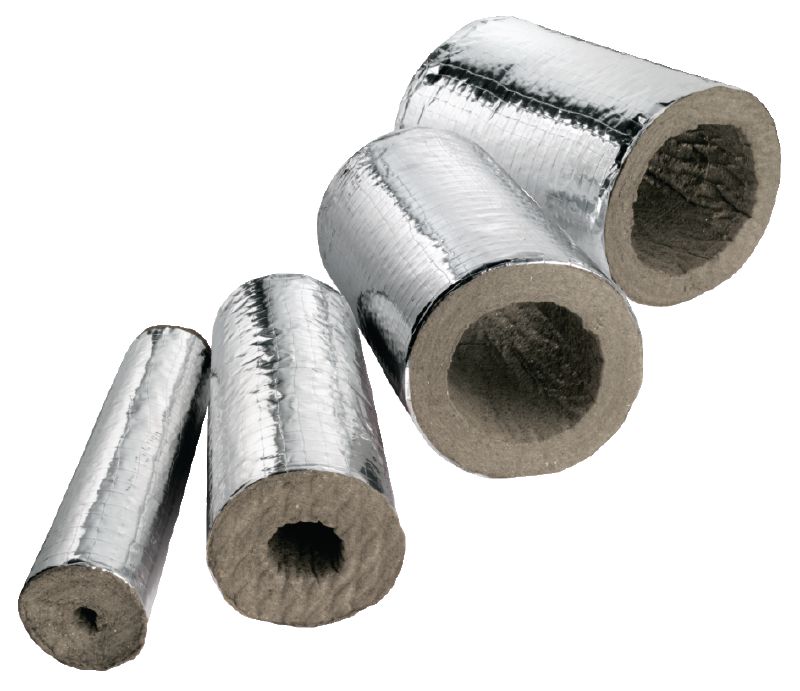

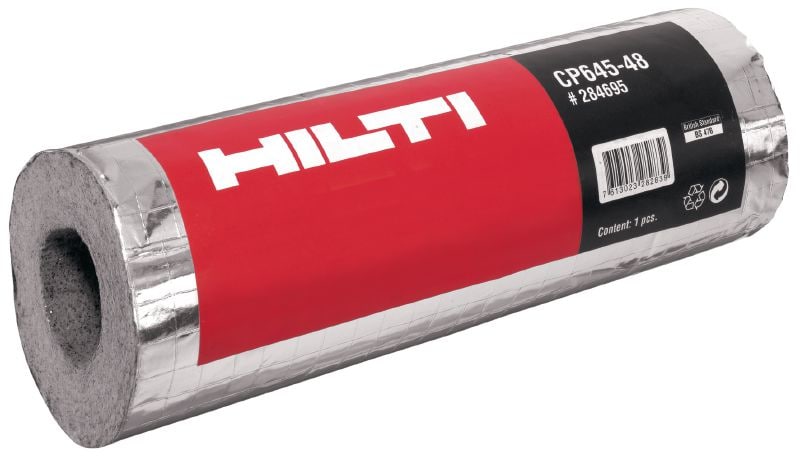

CP 645 firestop insulated sleeve
Ready-to-use firestop sleeve made of mineral wool with intumescent additives
- Base materials: Concrete
- Pipe diameter - range: 157 - 159 mm
- Length: 300 mm
ultimate
Customers also searched for insulated fire sleeve or fire sleeve for pipes.
Choose options
Pipe diameter - range
- 15 - 19 mm
- 19 - 23 mm
- 25 - 29 mm
- 32 - 36 mm
- 40 - 44 mm
- 46 - 50 mm
- 52 - 56 mm
- 58 - 62 mm
- 65 - 69 mm
- 74 - 78 mm
- 78 - 82 mm
- 87 - 91 mm
- 100 - 104 mm
- 106 - 110 mm
- 112 - 116 mm
- 125 - 129 mm
- 157 - 161 mm
- 167 - 171 mm
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
Discounted net
From £114.30
Technical Data
Base materials
Concrete
Pipe diameter - range
157 - 159 mm
Length
300 mm
Product class
Ultimate
Application temperature range
5 - 50 °C
Temperature resistance range
-40 - 100 °C
Application
Other, Non-combustible pipes
Documents
pdf [E1] CP-645 Product Pack, English [ 4.3 MB ]
Features & Applications
Features
- A ready-to-use firestop sleeve made of mineral wool with intumescent additives
- No preparatory work required – reducing installation time
- Suitable for firestopping angled pipes
Applications
- Sealing insulated metal pipes and combustible pipes from 13.5 to 168.3 mm in diameter in penetrations through fire compartment walls and floors
- Sealing single cables up to 50 mm in diameter and bunched cables
- Suitable for plasterboard and solid wall / floor and firestop seals made with CP 670
For approval or certificate information, please see individual items.
