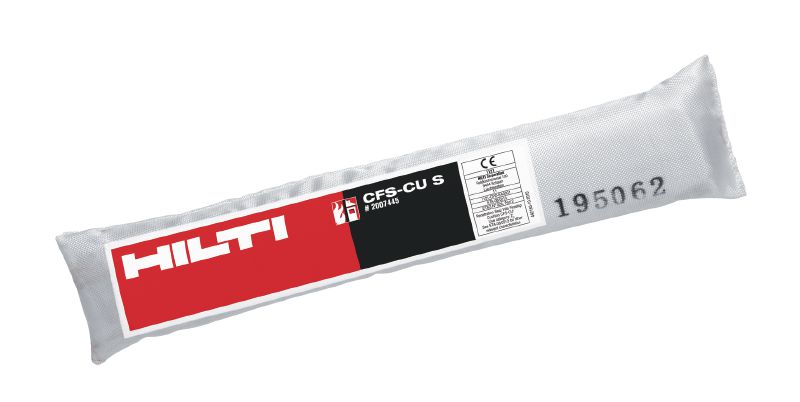

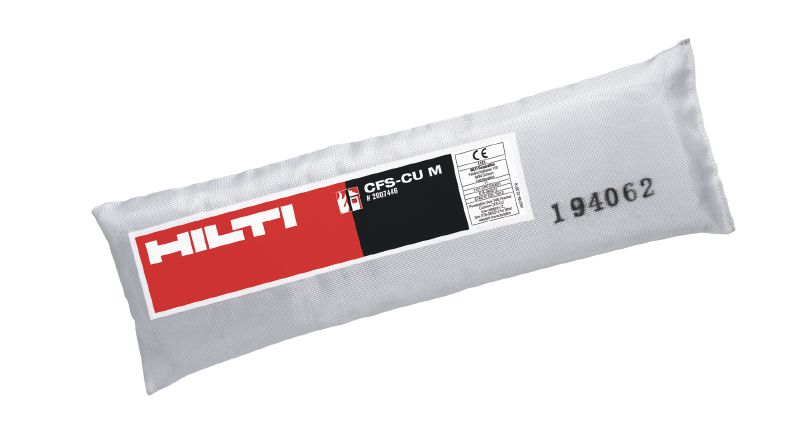

CFS-CU firestop cushion
Preformed firestop cushions for sealing temporary or permanent fire penetrations
- Approvals: ETA-08/0213
- Base materials: Gypsum board, Concrete, Masonry
- LEED VOC: 6.6 g/l
ultimate
Customers also searched for Pillows, Removable, Temporary Firestop, Bags or Cable.
Choose options

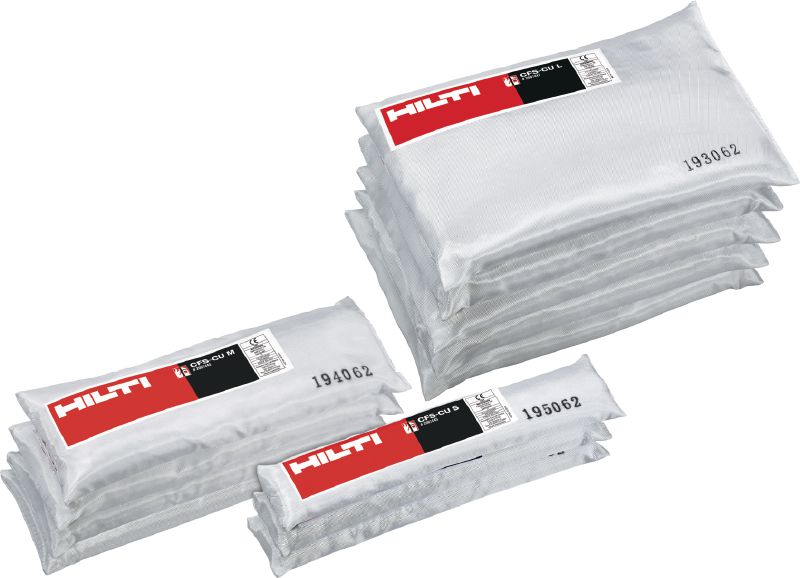

Dimensions (LxWxH)
- 300 x 40 x 30 mm
- 300 x 80 x 30 mm
- 300 x 170 x 30 mm
Length
- 300 mm
Pack size
- 6 pc
- 15 pc
- 30 pc
Quantity
Packs
Total Pieces
1
Discounted net
From £368.40
Technical Data
Approvals
ETA-08/0213
Base materials
Gypsum board, Concrete, Masonry
LEED VOC
6.6 g/l
Application temperature range
-20 - 40 °C
Temperature resistance range
-20 - 40 °C
Smoke development CAN/ULC-S102 (input)
No
Reaction to fire class (EN 13501-1)
B
Product class
Ultimate
Documents
Features & Applications
Features
- Quick and easy installation
- Re-usable and thus economical
- Effective immediately after installation
- Strong, durable fabric design
- No special tools required
Applications

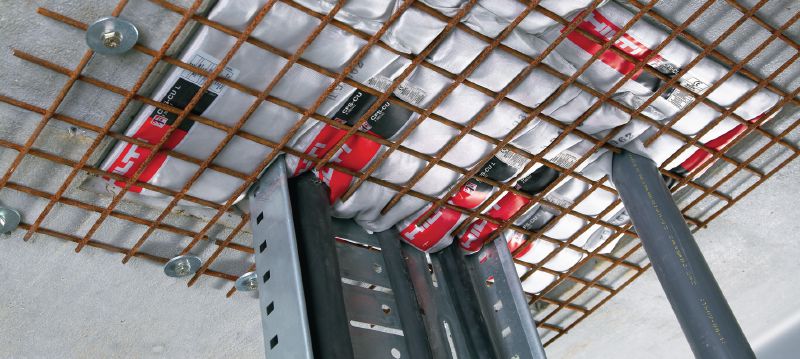

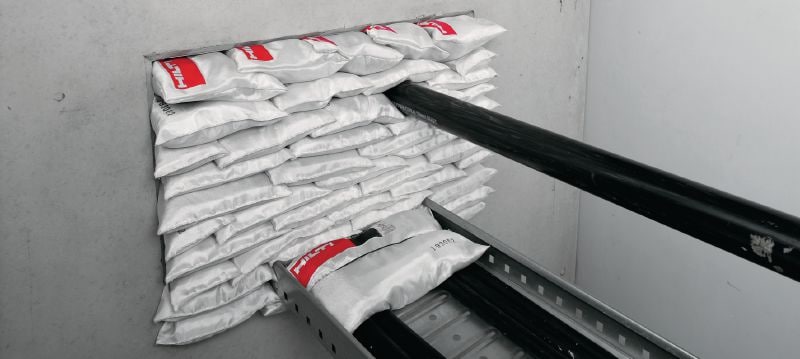

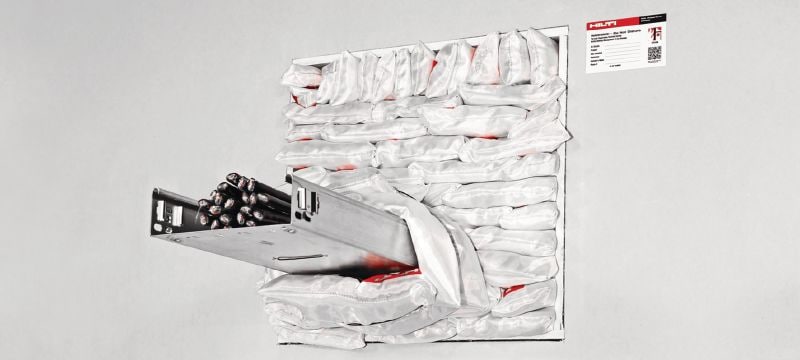

- Cable penetrations in flexible walls from 100 mm and rigid walls and floors from 150 mm

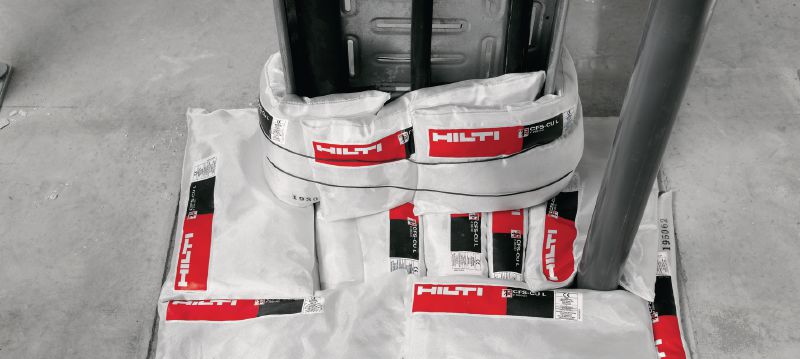

- Temporary sealing of openings in floors and walls through the construction phase
- Cables, cable bundles and 50 mm PVC pipes
For approval or certificate information, please see individual items.
