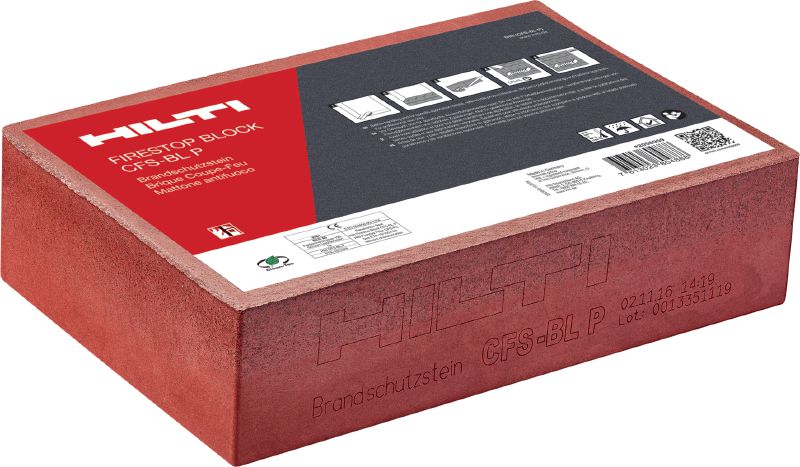

Preformed firestop blocks for mixed penetrations sealing in wood

  • Dimensions (LxWxH): 200 x 130 x 50 mm
  • Base materials: Wood
  • LEED VOC: N/A g/l

Technical Data

Dimensions (LxWxH)
200 x 130 x 50 mm
Base materials
Wood
LEED VOC
N/A g/l
Application temperature range
5 - 40 °C
Temperature resistance range
-15 - 60 °C
Reaction to fire class (EN 13501-1)
E

Documents

Features & Applications

Features

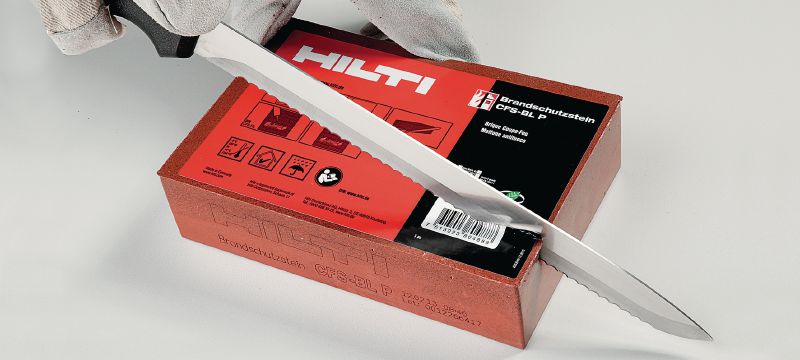

  • Firestop blocks for wood - easy to install solution with no power tools required
  • Very easy maintenance and retrofitting of cables
  • Economical installation – block is pre-cured and ready-to-use
  • Fiber-, halogen- and solvent-free
  • Virtually dust-free (depending on the installation method)

Applications

  • For use in wood, not suitable for use in concrete or masonry
  • Temporary or permanent sealing around cables, cable bundles and cable trays in wall and floor openings
  • Cables, cable bundles and cable trays, conduits and conduit bundles, co-axial cables
  • Non-combustible pipes with or without insulation
  • Combustibles pipes with CFS-B

For approval or certificate information, please see individual items.
