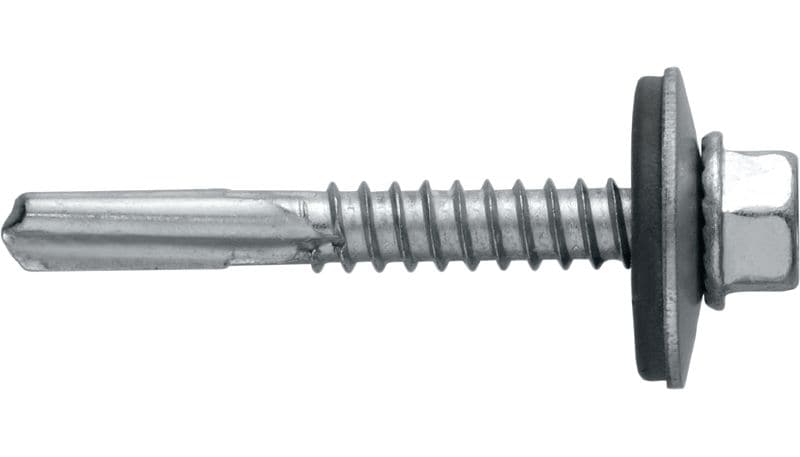

S-MD55Z Self-drilling metal screws

Self-drilling screw (zinc-plated carbon steel) with 16 mm washer for thick metal-to-metal fastenings (up to 15 mm)

  • Base materials: Carbon steel
  • Environmental conditions: Dry indoor
  • Screw head diameter: 10 mm
premium

Customers also searched for zinc self drilling screw Hexagon head self drilling screw or coarse thread.

Choose options

Thickness fastened range MF
  • 4.6 - 15 mm
  • 4.6 - 27 mm
  • 4.6 - 40 mm
  • 4.6 - 57 mm
  • 4.6 - 77 mm
Drilling capacity range DC
  • 4.6 - 15 mm
Length
  • 40 mm
  • 52 mm
  • 65 mm
  • 82 mm
  • 102 mm
Screw drive/recess type
  • Hexagon 8
Pack size
  • 100 pc
  • 250 pc
Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From £112.00

Technical Data

Base materials
Carbon steel
Environmental conditions
Dry indoor
Screw head diameter
10 mm
Product class
Premium
Washer type
Bonded EPDM

Documents

Features & Applications

Features

  • Self-drilling screw for fast assembly in one step
  • Perfectly sealed fastening points
  • Perfect Sealing (PS) feature – specially engineered geometry below the head which prevents over-compression of the EPDM washer, helping to reliably seal out water
  • Fast and robust drill tip with Racing Tip technology – a wave-form cutting edge which removes chips much faster and helps prevents point burn-out
  • Creates more reliable fastenings with defined load values

Applications

  • Fastening sheet metal and profiles to steel substructures and framing, with or without intermediate insulation layers
  • Galvanised carbon steel for fastening in dry, indoor environments
  • Thick metal-to-metal connections (up to 15 mm)
  • For applications requiring watertight fastenings with 16 mm washer

For approval or certificate information, please see individual items.
