S-MD53SS Self-drilling metal screws

Self-drill screw S-MD53SS 5,5x32 #2114793

Configurator
Technical Data
Documents
Features & Applications
Related Products
S-MD

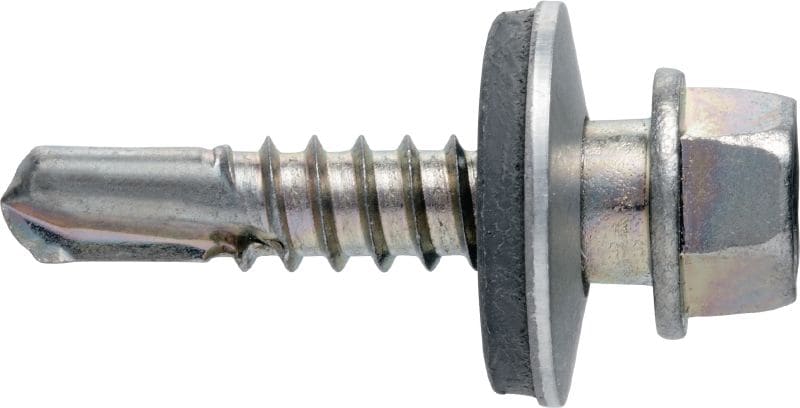

Self-drilling screw (A4 stainless steel) with 16 mm washer for medium-thick metal-to-metal fastenings (up to 6 mm)

  • Base materials: Aluminium
  • Environmental conditions: Dry indoor, Indoor with temporary condensation, Outdoor with low pollution, Outdoor with moderate concentration of pollution, Outdoor, areas with heavy industrial pollution, Close proximity to roads, Coastal areas
  • Length: 32 mm
premium

Customers also searched for self drilling screw , coarse thread self drilling screw , Hexagon head self drilling screw , Stainless steel A4 self drilling screw or racing tip self drilling screw .

Choose options

Thickness fastened range MF
  • 2.6 - 14 mm
Drilling capacity range DC
  • 2.6 - 6 mm
Length
  • 32 mm
Screw drive/recess type
  • Hexagon 8
Pack size
  • 250 pc
 Product options
Quantity
Packs
Total Pieces
250
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
£187.98
£0.75 / 1 Piece

Technical Data

Base materials
Aluminium
Environmental conditions
Dry indoor, Indoor with temporary condensation, Outdoor with low pollution, Outdoor with moderate concentration of pollution, Outdoor, areas with heavy industrial pollution, Close proximity to roads, Coastal areas
Length
32 mm
Screw head diameter
10 mm
Product class
Premium
Washer type
Bonded EPDM

Documents

Approval document
Reference document
Technical information
Sustainability Documentation
Operating Instruction
pdf DIBt Zulassung Z-14.4-769 für Fassadenschrauben S-MD, S-AD, S-MP, S-PD und S-PS, German, English [ 13.3 MB ]
pdf ETA-18/0880_for_SM_screws_2024-04-11_en, German [ 4.4 MB ]
pdf ETA-18/0880_for_SM_screws_2024-04-11_en, English [ 4.4 MB ]
pdf UKTA-0836-22-6521_S-MD_S-MDW_S-MP_S-MS_2023.03.02, English [ 3.1 MB ]

Features & Applications

Features

  • Self-drilling screw for fast assembly in one step
  • Perfect Sealing (PS) feature – specially engineered geometry below the head which prevents over-compression of the EPDM washer, helping to reliably seal out water
  • Fast and robust drill tip with Racing Tip technology – a wave-form cutting edge which removes chips much faster and helps prevents point burn-out
  • For reliable fastenings with defined load values
  • Attractive final appearance – screw head can be coloured to match the façade

Applications

  • Fastening sheet metal and profiles to steel substructures and framing, with or without intermediate insulation layers
  • Stainless steel (A4) for fastening in highly corrosive environments
  • Thin to medium-thick metal-to-metal connections (up to 6 mm)
  • For applications requiring watertight fastenings with 16 mm washer
  • Fastening aluminium to aluminium substructures, e.g. for aluminium façade systems
