S-MS 01 Z Self-drilling sheet metal screws

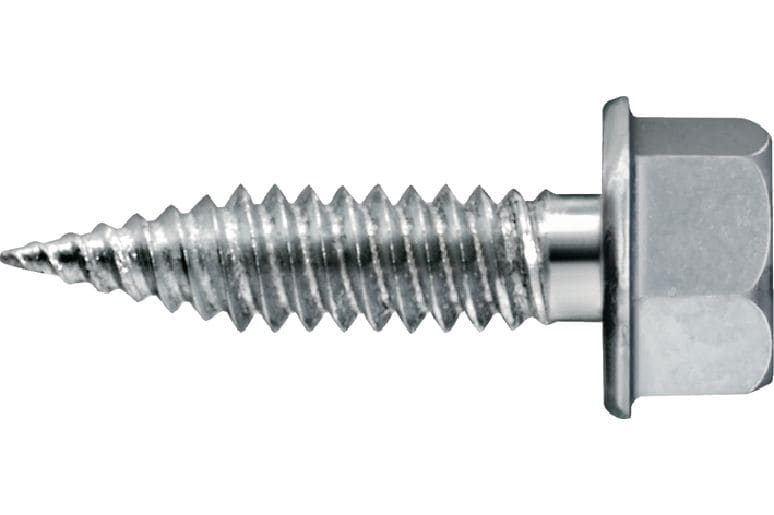

Self-drill screw S-MS01Z 4,8x20

L021402.tif
L022809_cropped (193669)

Self-drilling screw without washer for quickly connecting overlapping metal sheets

  • Base materials: Carbon steel
  • Environmental conditions: Dry indoor
  • Length: 20 mm
premium

Customers also searched for Self drilling screw , Fastening overlapping metal sheets , Self drilling screw no washer, Stitching screw or hexagon head.

Choose options

Corrosion protection
  • Zinc-plated
Drilling capacity range DC
  • 1.2 - 2.5 mm
Thickness fastened range MF
  • 1.2 - 2.5 mm
Length
  • 20 mm
Pack size
  • 1000 pc
 Product options
Quantity
Packs
Total Pieces
1000
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occurred

Please contact us

Technical Data

Base materials
Carbon steel
Environmental conditions
Dry indoor
Length
20 mm
Screw head diameter
10 mm
Product class
Premium
Washer type
none

Documents

pdf ETA-18/0880 for S-MD, S-MS, S-MDW, S-MP screws for metal members and sheeting, English, German [ 4.4 MB ]
pdf ETA-10/0182 for S-MD and S-MS screws for metal members and sheeting, German, English, French [ 6.9 MB ]

Features & Applications

Features

  • Material around the screw is simply displaced – helps to prevent corrosion of the sheet due to rusting metal chips
  • High load values
  • Can be collated for use with the SDT stand-up handle – for even greater speed and efficiency
  • Fast and efficient self-drilling sheet metal screws
  • Virtually no skidding when starting at an angle or on wet surfaces

Applications

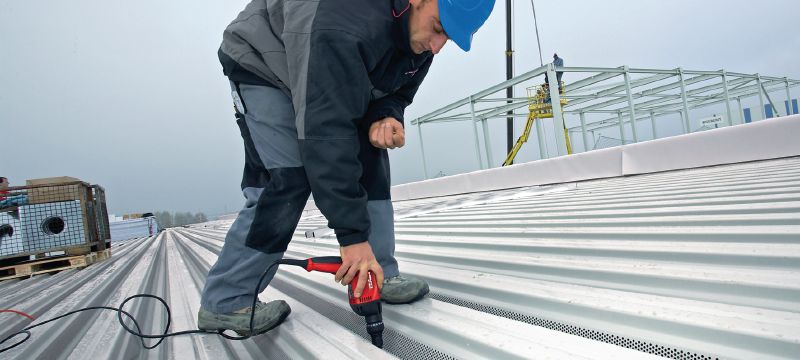

  • Fastening overlapping metal sheets on insulated roofs
  • Fastening liner trays and web joint brackets
  • Fastening wall cassette longitudinal overlaps
  • Fastening joints between trapezoidal profile sheets
  • Fastening thin metal sheets (up to 2x 1.25 mm)
