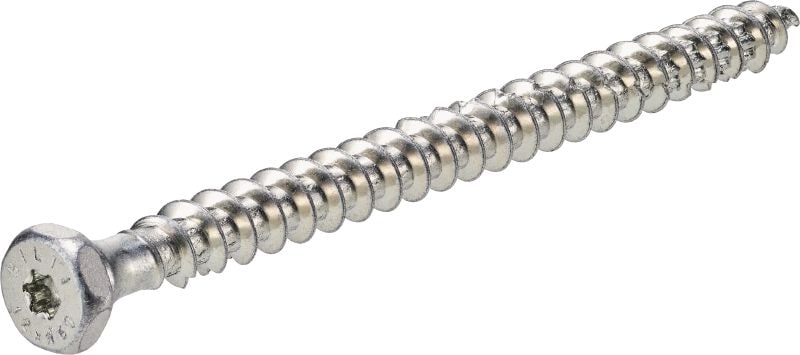

S-WDF-Z Structural timber screw, dual head with full thread

Configurator
Technical Data
Documents
Features & Applications
Related Products
L600071 (3024181)
L600072 (3024187)
L148222_cropped (3013501)
L148223_cropped (3013494)
L148224_cropped (3013486)
L148225_cropped (3013480)

Timber screw with full thread and dual head (hexagon socket SW17 and TX40 drive) for use with TX40 bits and nut setters to lift prefabricated wood elements

  • Application: Wood to wood, Structural timber
  • Base materials: Wood, Timber, Cross laminated timber (CLT)
  • Environmental conditions: Dry indoor, Indoor with temporary condensation, Outdoor with low pollution
premium

Choose options

Screw diameter d
  • 12 mm
Length
  • 60 mm
  • 80 mm
  • 100 mm
  • 120 mm
  • 160 mm
Pack size
  • 30 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From £40.50

Technical Data

Application
Wood to wood, Structural timber
Base materials
Wood, Timber, Cross laminated timber (CLT)
Environmental conditions
Dry indoor, Indoor with temporary condensation, Outdoor with low pollution
Screw head type
Dual head (Hex Head with TX)
Screw drive/recess type
TX 40, SW17
Screw diameter d
12 mm
Thread type
Full thread
Product class
Premium

Documents

Approval document
HSE Information
Technical information
Declaration of performance
Sustainability Documentation
pdf ETA-22/0772 Timber Construction Screws 2023, English [ 3.6 MB ]

Features & Applications

Features

  • Stronger and more efficient – full thread allows for higher load-bearing capacity; the screw can withstand more stress in any direction
  • Spend less time changing tools – dual screw head works with both TX40 bits and nut setters
  • Easier to fasten – lower screw-in resistance and lower torque requirements for fastening means a longer runtime for your tools
  • Longer lasting – electrogalvanised, anti-friction and zinc coated carbon steel protects against corrosion
  • Precisely matched to Hilti drill drivers and bits – helping to achieve higher quality fastenings every time

Applications

  • When combined with Hilti´s ball head lifting system, can be used to lift prefabricated roofs, walls and ceilings, as well as cross-laminated timber (CLT)
  • Securing structural metal-wood connections and metal sheets, shaped sheet and metal elements to wood
  • Fastening structural wood beams, flooring, joists and load bearing structures
  • For fastening in dry, indoor environments, protected outdoor environments, and roofed, open structures

For approval or certificate information, please see individual items.
