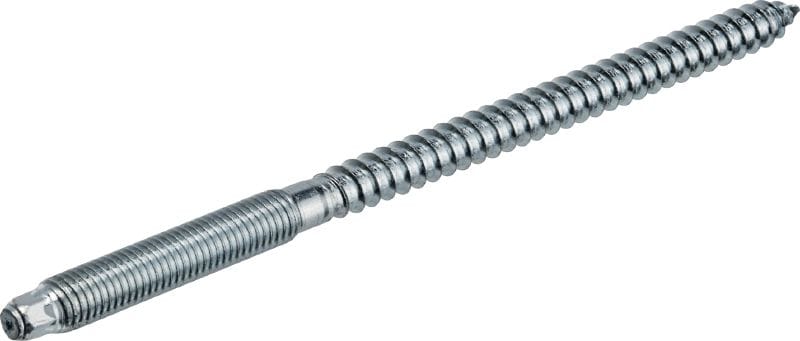

HSW Hanger bolt
Galvanised hanger bolt for anchoring wood structures to wood using pre-installed HCW connectors
- Material, corrosion: Carbon steel
- Head configuration: Externally threaded
- Approvals / test reports: ETA
Technical Data
Material, corrosion
Carbon steel
Head configuration
Externally threaded
Approvals / test reports
ETA
Base materials
Wood
Cleaning procedures
Non-cleaning
PROFIS software
No
Environmental conditions
Dry indoor
Material composition
Steel, 8.8 grade, zinc-plated (min. 5 µm)
Features & Applications
Features
- HSW hanger bolts are an efficient solution for wood-to-wood fastening as a part of ETA 21/0357
- Improve design efficiency – HCW wood connectors can handle tensile and shear loads, and are placed centrically, maximising versatility while minimising your calculation workload
- Quicker progress on the jobsite – pre-installed wood couplers save you labour, time or the risk of rework by making positioning, levelling and fastening easier
Applications
- Assembling and fastening prefabricated timber structures on-site, especially at residential scale
- Wood-to-wood connections using HCW wood connectors
For approval or certificate information, please see individual items.
