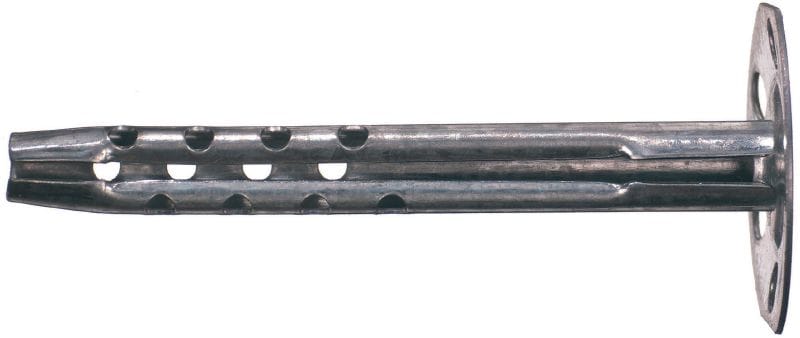

IDMR Metal insulation dowel
Economical stainless steel insulation anchor for fastening insulating materials when corrosion- and fire-resistance are required
- Base materials: Masonry (solid), Masonry (hollow), Concrete (tough)
- Working principle: Impact anchor
- Insulation material: Mineral wool, Soft board (e.g. EPS), Hard board (e.g. XPS, PUR, PIR)
Choose options
Insulation material thickness fastened - max.
- 30 mm
- 60 mm
- 90 mm
- 120 mm
- 150 mm
Drill bit diameter
- 8 mm
Anchor length
- 80 mm
- 110 mm
- 140 mm
- 170 mm
- 200 mm
Pack size
- 150 pc
- 250 pc
Quantity
Packs
Total Pieces
1
Discounted net
From £667.50
Technical Data
Base materials
Masonry (solid), Masonry (hollow), Concrete (tough)
Working principle
Impact anchor
Insulation material
Mineral wool, Soft board (e.g. EPS), Hard board (e.g. XPS, PUR, PIR)
Approvals / test reports
Fire
Environmental conditions
Outdoor (more than 1 km from coast)
Type of fastening
Through-fastening
Material composition
Steel, A2 (SS 304)
Material, corrosion
Stainless steel, A2, Stainless Steel, 304
Documents
Features & Applications
Features
- Fire resistant fastener in A2 steel for insulation materials up to 150 mm
- Set simply by hammering in
- Versatile - suitable for use with all standard insulation materials
- Insulation plates available for soft insulation material
Applications

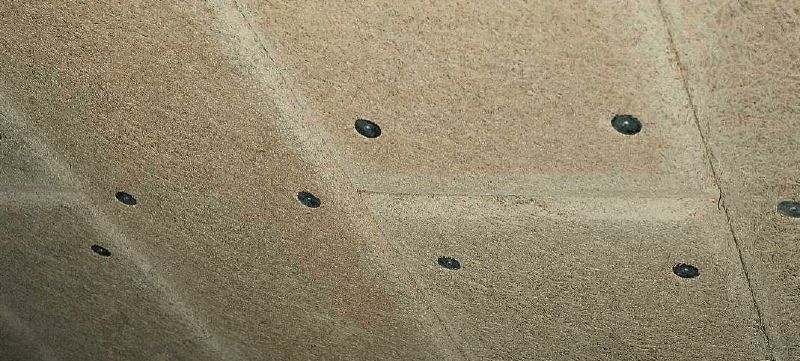

- Insulation fastenings with corrosion and fire resistance requirements
For approval or certificate information, please see individual items.
