HRD-UGT Plastic frame anchor

Configurator
Technical Data
Documents
Features & Applications
Related Products
79739.tif
HRD-UGT 14
HRD-UGT 14

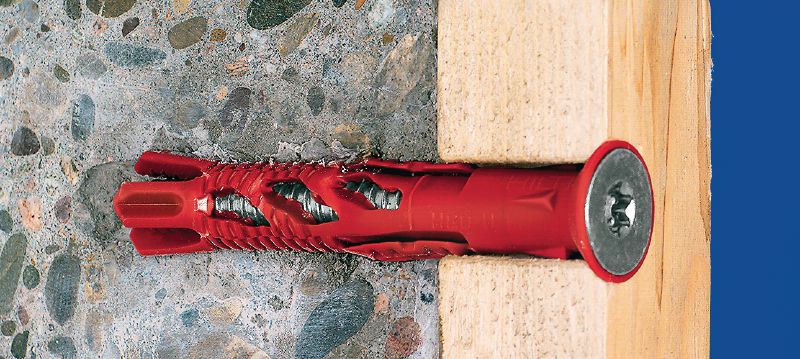

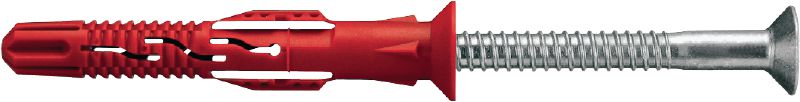

Economical plastic frame anchor for concrete and masonry with screw (carbon steel, countersunk head)

  • Base materials: Concrete (aerated), Concrete (uncracked), Masonry (grout-filled CMU), Masonry (hollow), Masonry (solid)
  • Head configuration: Countersunk
  • Approvals / test reports: N/A

Choose options

Anchor size
  • 14 mm
Anchor length
  • 110 mm
  • 140 mm
  • 160 mm
Pack size
  • 50 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From £352.40

Technical Data

Base materials
Concrete (aerated), Concrete (uncracked), Masonry (grout-filled CMU), Masonry (hollow), Masonry (solid)
Head configuration
Countersunk
Approvals / test reports
N/A
Material, corrosion
Carbon steel, zinc-plated, Plastic
Environmental conditions
Indoor, dry conditions
Type of fastening
Through-fastening

Documents

pdf Tech_HRD_Redundant_2023_en, English [ 1.2 MB ]

Features & Applications

Features

  • Contact corrosion resistance – extra-large collar helps prevent contact corrosion between different materials, e.g. steel and aluminum
  • Unbeatable versatility – you can use these plastic anchors in concrete, solid masonry and hollow block
  • Extensive documentation available – see the technical data sheet for essential load, resistance, design and installation information

Applications

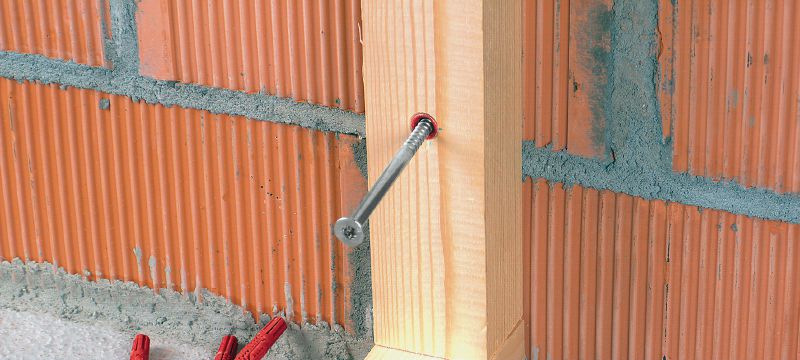

  • Framed openings – countersunk screw ideal for fastening door and window frames
  • Metal fabrication – fastening handrails, balustrades, railings, window bars and other architectural metalwork to concrete and masonry
  • Minimum embedment depth in concrete and hollow brick: 70 mm

For approval or certificate information, please see individual items.
