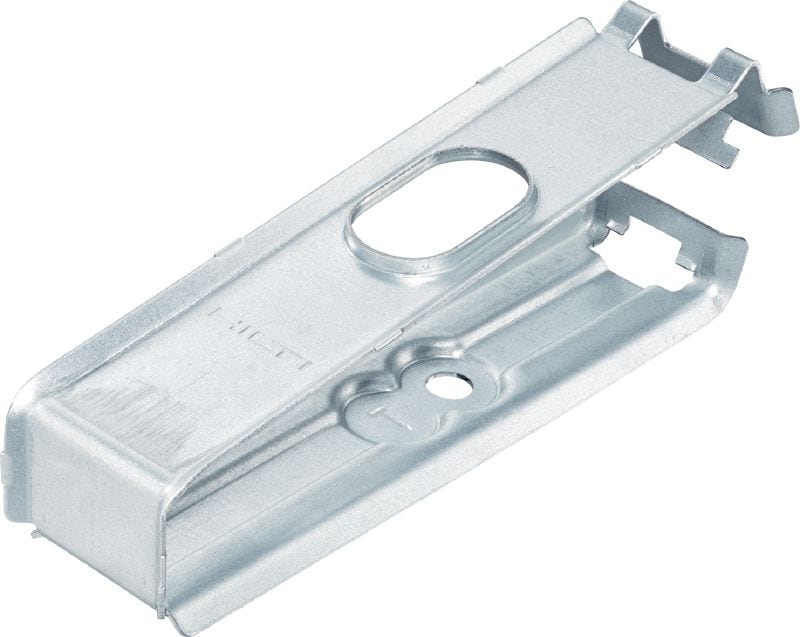

X-EKB-FE MX Metal cable clasp
Metal cable clasp for use with collated nails or anchors
- Application: Cable Fastenings, Conduit Fastening
- Material: Carbon steel
- For use with (tools): BX 3, GX 120, GX 3
ultimate
Technical Data
Application
Cable Fastenings, Conduit Fastening
Material
Carbon steel
For use with (tools)
BX 3, GX 120, GX 3
Base materials
Concrete (soft), Concrete (tough)
Approvals
AbP P-1023 DMT DO, AbP P-2401/198/16-MPA BS, AbP P-MPA-E-16-010
Corrosion protection
Galvanised zinc coated <20 µm
Environmental conditions
Dry indoor
Material composition
Carbon steel, Zinc coating 5-13 µm
Product class
Ultimate
Documents
Features & Applications
Features
- Faster, simpler and more reliable installation of fire-rated safety cables
- General building inspectorate approval in accordance with DIN 4102-12 available for a wide range of cables with circuit integrity rating
- Can be used on ceilings and walls
- System with long spacing distance for economical installation
- Designed to make overhead fastening easier and more convenient
Applications
- Certified usability in circuit integrity systems
- Cable installation in escape routes
- Emergency lighting, smoke ventilation systems, sprinkler systems, firemen’s elevators, etc.
- Fastening single or bunched cables
- Published cable capacity is the maximum theoretical value; for exact values please see specific approvals
For approval or certificate information, please see individual items.
