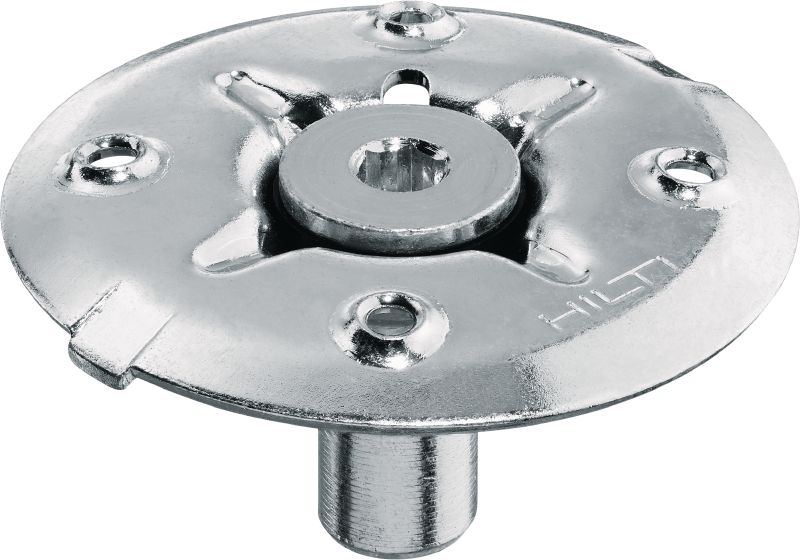

X-FCM Grating fastener disc
Grating fastener disc for use with threaded studs in non-corrosive environments
- Application: Grating
- Approvals: ABS, LR
- For use with (tools): BX 3, DX 351
ultimate
Choose options
Grating height
- 23 - 28 mm
- 28 - 33 mm
- 32 - 37 mm
- 38 - 43 mm
Grating width range
- 18 - 40 mm
Corrosion protection
- Galvanised zinc coated <20 µm
Pack size
- 100 pc
Quantity
Packs
Total Pieces
1
Discounted net
From £1,440.00
Technical Data
Application
Grating
Approvals
ABS, LR
For use with (tools)
BX 3, DX 351
Corrosion protection
Galvanised zinc coated <20 µm
Environmental conditions
Dry indoor, Indoor with temporary condensation
Minimum thickness of base material (steel)
6 mm
Product class
Ultimate
Documents
Features & Applications
Features
- Galvanised disc
- Locking tabs on the disc help to prevent self-loosening
- Non-slip disc surface
Applications

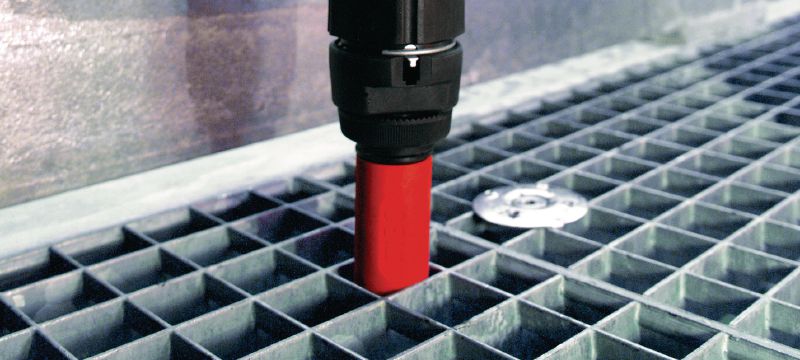

- Grating fastener disc for use with M8 threaded stud in dry and non-corrosive indoor environments
For approval or certificate information, please see individual items.
