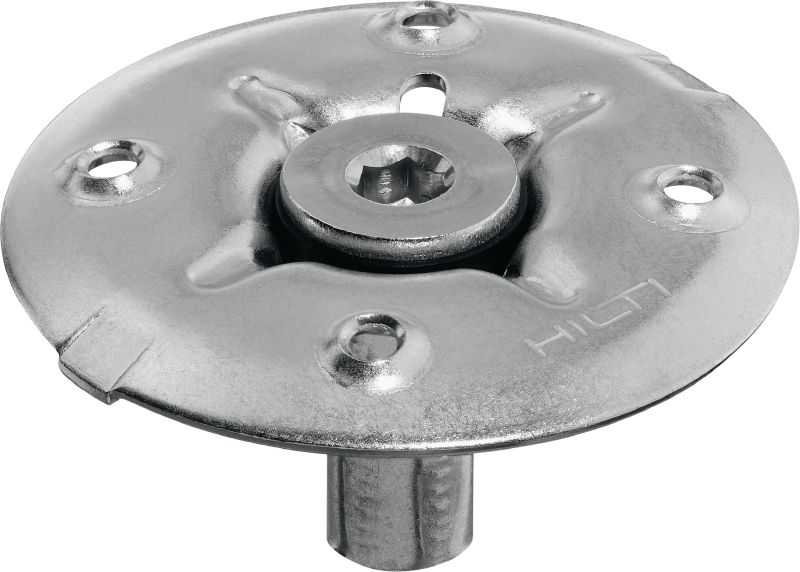

X-FCM-R Grating fastener disc (stainless steel)

Configurator
Technical Data
Documents
Features & Applications
Related Products
L130780 (2556335)
Grating
X-FCM-R
S-BT-GF/ S-BT-GR (85517)

Stainless steel grating fastener disc for fixing floor grates with threaded studs in highly corrosive environments

  • Application: Grating
  • Approvals: ABS, BV, DNV GL, LR
  • For use with (tools): BX 3, DX 351

Choose options

Grating height
  • 23 - 28 mm
  • 28 - 33 mm
  • 32 - 37 mm
  • 38 - 43 mm
  • 48 - 53 mm
Grating width range
  • 18 - 40 mm
Corrosion protection
  • Stainless steel A4(316) or equivalent
Pack size
  • 100 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From £3,519.00

Technical Data

Application
Grating
Approvals
ABS, BV, DNV GL, LR
For use with (tools)
BX 3, DX 351
Corrosion protection
Stainless steel A4(316) or equivalent
Environmental conditions
Dry indoor, Indoor with temporary condensation, Outdoor temporary applications, Outdoor with low pollution, Outdoor with moderate concentration of pollution, Coastal areas, Outdoor, areas with heavy industrial pollution
Minimum thickness of base material (steel)
6 mm

Documents

Technical information
Approval document
Brochure
Documentation
Declaration of performance
Operating Instruction
pdf X-FCM-R Data Sheet, English, German, Spanish, French, Italian, Polish [ 4.3 MB ]
pdf X-BT-GR, X-BT-MR Data Sheet, English [ 2.7 MB ]
pdf Direct Fastening Technology Manual, English [ 6 MB ]

Features & Applications

Features

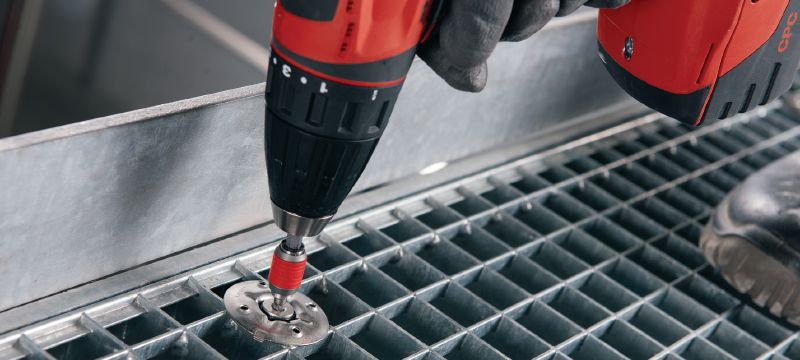

  • Labour-saving grating installation – fewer steps than traditional grating clamps and welding
  • Approvals and certificates – technical data, test reports and approvals available
  • No surface rework needed – when fastening grating to steel with S-BT and X-BT threaded studs
  • Durable hold – locking tabs on the disc help to prevent loosening or spinning
  • Reduce trip hazards – non-slip surface and minimized protrusion on walkway gratings when correctly installed

Applications

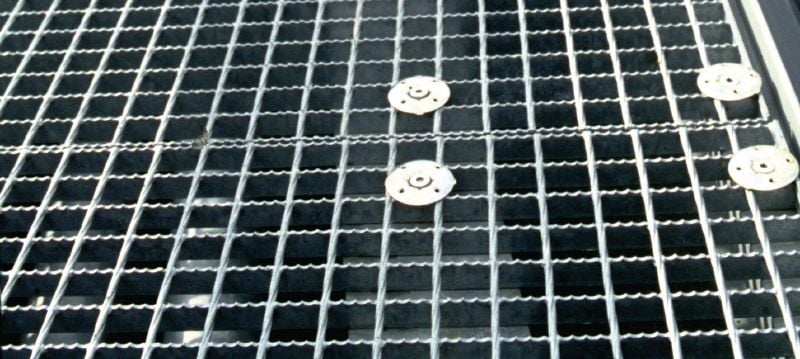

  • Fastening grating to steel in highly corrosive C5 environments, such as ships or offshore oil and gas installations
  • For gratings exposed to standard loads such as walkways
  • Fastening steel grating
  • Fastening fiber-reinforced plastic (FRP) grating
  • Grating fastener disc for use with M8 threaded studs

For approval or certificate information, please see individual items.
