X-FCM-F Grating fastener disc (duplex coated)
Duplex coated grating fastener disc for fixing floor grates with threaded studs in mildly corrosive environments
- Application: Grating
- Approvals: ABS, BV, DNV GL, LR
- For use with (tools): DX 351
ultimate
Choose options
Grating height
- 23 - 28 mm
- 28 - 33 mm
- 32 - 37 mm
- 38 - 43 mm
- 48 - 53 mm
Grating width range
- 18 - 40 mm
Corrosion protection
- Duplex coating, equivalent to 45 µm hot-dip galvanised
Pack size
- 100 pc
Quantity
Packs
Total Pieces
1
Discounted net
From £2,010.00
Technical Data
Application
Grating
Approvals
ABS, BV, DNV GL, LR
For use with (tools)
DX 351
Corrosion protection
Duplex coating, equivalent to 45 µm hot-dip galvanised
Environmental conditions
Dry indoor, Indoor with temporary condensation, Outdoor temporary applications, Outdoor with low pollution, Outdoor with moderate concentration of pollution
Minimum thickness of base material (steel)
6 mm
Product class
Ultimate
Documents
Features & Applications
Features

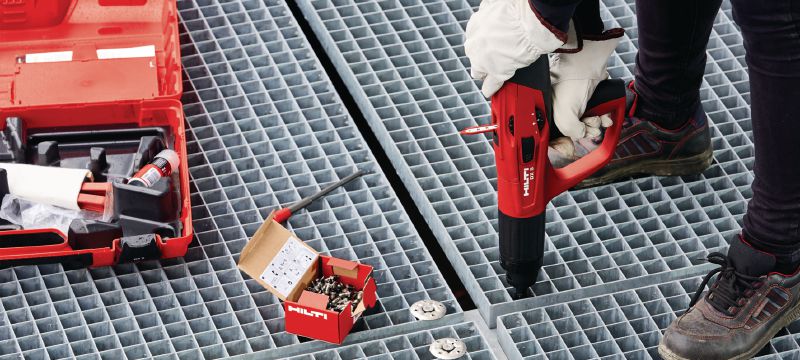

- Labour-saving grating installation – fewer steps than traditional grating clamps and welding
- Approvals and certificates – technical data, test reports and approvals available
- No surface rework needed – when fastening grating to steel with S-BT and X-BT threaded studs
- Durable hold – locking tabs on the disc help to prevent loosening or spinning
- Reduce trip hazards – non-slip surface and minimized protrusion on walkway gratings when correctly installed
Applications
- Fastening grating to steel in mildly corrosive C3 environments, such as power plants, industrial facilities and mining
- For gratings exposed to standard loads such as walkways
- Fastening steel grating
- Fastening fiber-reinforced plastic (FRP) grating
- Grating fastener disc for use with M8 threaded studs
For approval or certificate information, please see individual items.
