X-FCM-R NG Narrow grating fastener disc (stainless steel)

Configurator
Technical Data
Documents
Features & Applications
Related Products
L130782 (2556337)
L141128_cropped (223152)
L141129_cropped (223144)
L141130_cropped (223146)

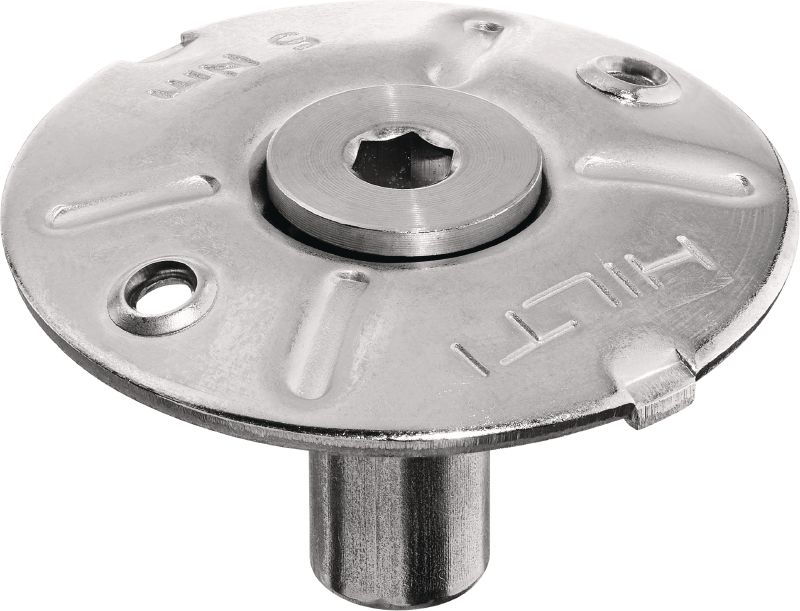

Stainless steel narrow grating fastener disc for fixing narrow-mesh floor grates with threaded studs in highly corrosive environments

  • Application: Grating
  • For use with (tools): DX 460, DX 5, DX 6
  • Corrosion protection: Equivalent to A4 (316) stainless steel
ultimate

Choose options

Grating height
  • 23 - 28 mm
  • 32 - 37 mm
  • 38 - 43 mm
  • 48 - 53 mm
Grating width range
  • 13 - 22 mm
Corrosion protection
  • Equivalent to A4 (316) stainless steel
Pack size
  • 100 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From £3,180.00

Technical Data

Application
Grating
For use with (tools)
DX 460, DX 5, DX 6
Corrosion protection
Equivalent to A4 (316) stainless steel
Environmental conditions
Outdoor, areas with heavy industrial pollution, Outdoor with moderate concentration of pollution, Outdoor with low pollution, Outdoor temporary applications, Indoor with temporary condensation, Coastal areas, Dry indoor
Product class
Ultimate

Documents

Technical information
Approval document
Brochure
Certificate
Operating Instruction
pdf X-FCM-R NG Data Sheet, English, German, Spanish, French, Italian, Polish [ 4.8 MB ]
pdf Direct Fastening Technology Manual, English [ 6 MB ]

Features & Applications

Features

  • Labour-saving grating installation – fewer steps than traditional grating clamps and welding
  • Approvals and certificates – technical data, test reports and approvals available
  • No surface rework needed – when fastening grating to steel with S-BT and X-BT threaded studs
  • Durable hold – locking tabs on the disc help to prevent loosening or spinning
  • Reduce trip hazards – non-slip surface and minimized protrusion on walkway gratings when correctly installed

Applications

  • Fastening narrow grating to steel in highly corrosive C5 environments, such as ships or offshore oil and gas installations
  • For gratings exposed to standard loads such as walkways
  • Fastening narrow-mesh steel grating
  • Fastening fiber-reinforced plastic (FRP) mini-mesh grating
  • Grating fastener disc for use with M8 threaded studs

For approval or certificate information, please see individual items.
