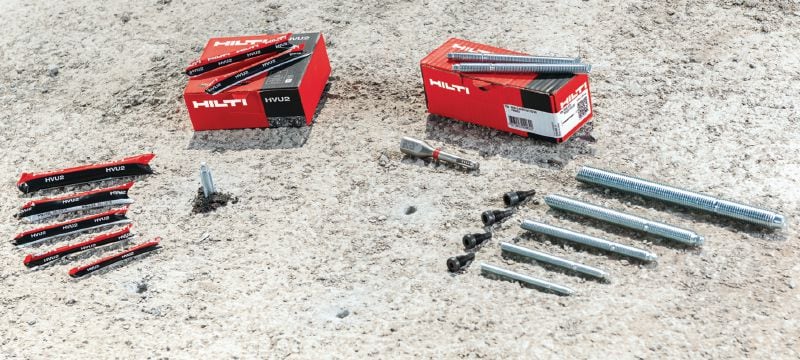

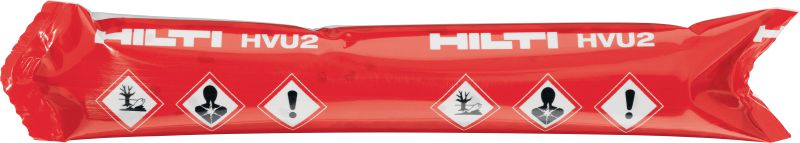

HVU2 Anchor capsule
Ultimate-performance foil adhesive capsule for heavy-duty anchoring in concrete
- Approvals / test reports: ETA, Fire
- Base material condition: Dry, Wet
- PROFIS software: Yes
Customers also searched for capsule or glass capsule.
Choose options
Anchor size
- M8
- M10
- M12
- M16
- M20
- M24
- M27
- M30
Standard embedment depth
- 80 mm
- 90 mm
- 110 mm
- 125 mm
- 170 mm
- 190 mm
- 210 mm
- 240 mm
- 270 mm
Pack size
- 4 pc
- 5 pc
- 10 pc
- 20 pc
- 300 pc
- 400 pc
Quantity
Packs
Total Pieces
1
Discounted net
From £90.50
Technical Data
Approvals / test reports
ETA, Fire
Base material condition
Dry, Wet
PROFIS software
Yes
Material composition
Hybrid urethane methacrylate adhesive
Tested/approved for diamond drilling
Yes
In-service temperature – range
-40 - 120 °C
Storage and transportation temperature range
5 - 25 °C
Seismic loading
Yes
Cleaning procedures
Automatic cleaning (SafeSet hollow drill bit), Compressed-air cleaning, Manual cleaning
Documents
Features & Applications
Features

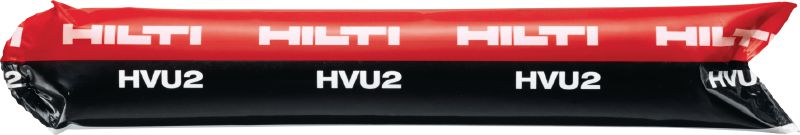

- Tough and resilient soft foil capsule – no more risk of breakage, like with glass capsules
- Suitable for use under tough jobsite conditions including water-saturated holes and at low temperatures, even in diamond-cored holes
- High performance in seismic and static conditions in cracked and uncracked concrete

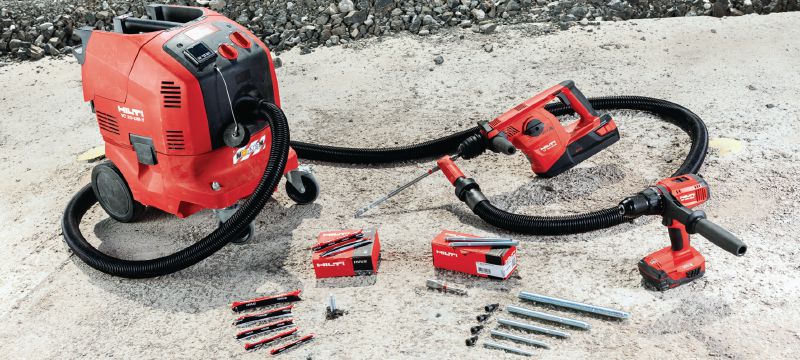

- Automatic hole cleaning (SafeSet) with TE-CD and TE-YD drill bits in combination with a Hilti vacuum cleaner
- Anchors can be loaded almost instantly – only 5 minutes curing time at 20°C and above
Applications

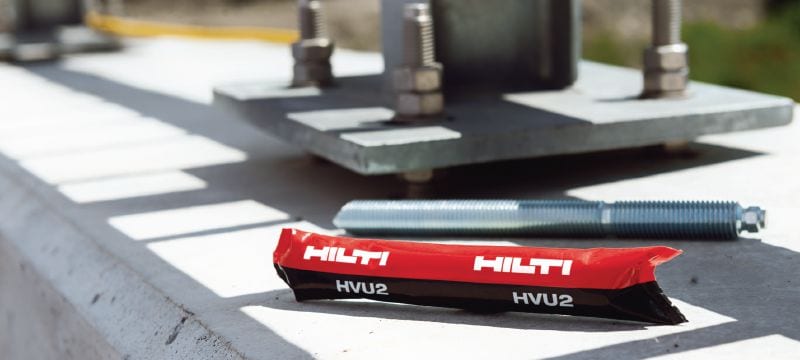

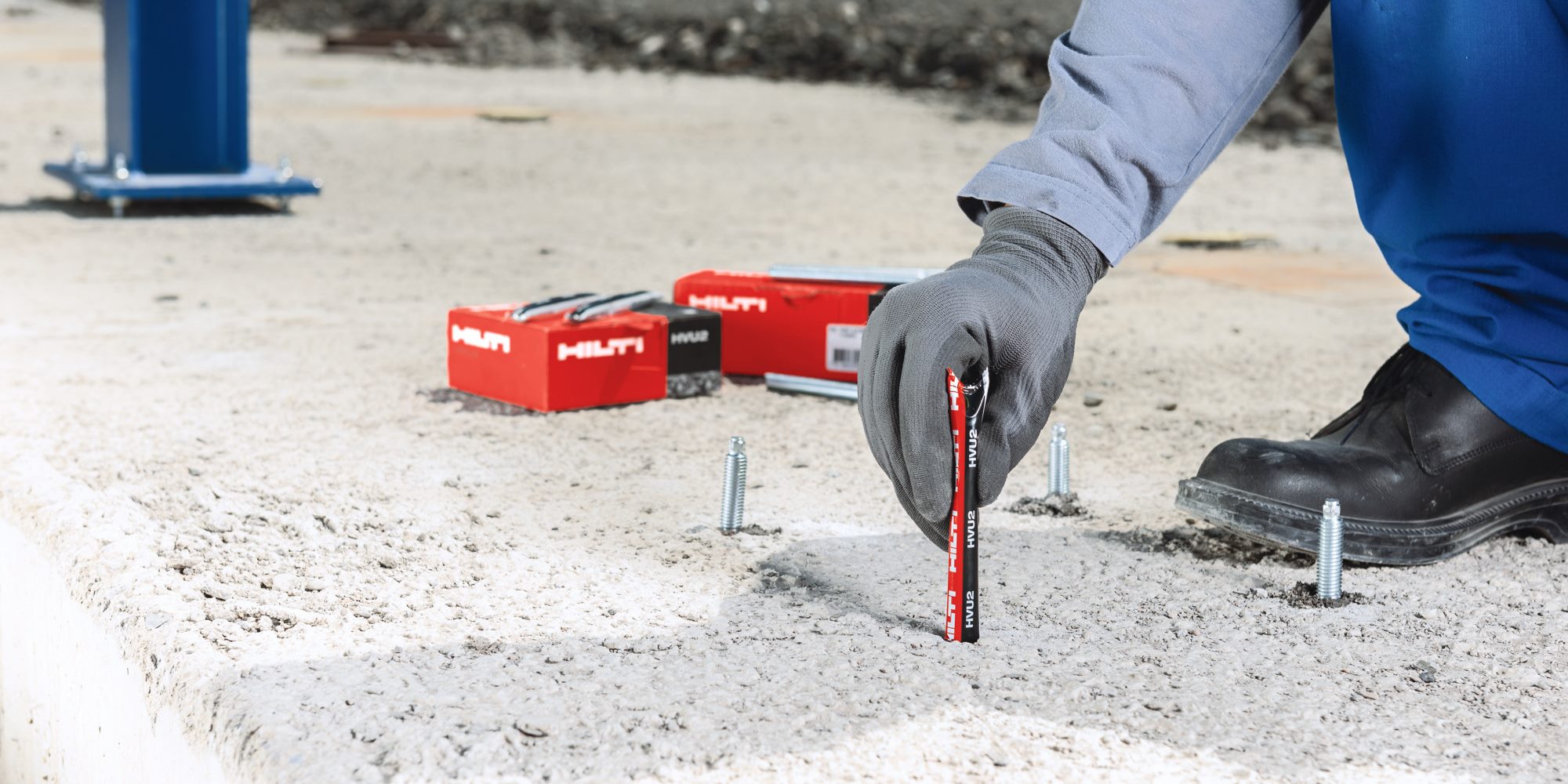

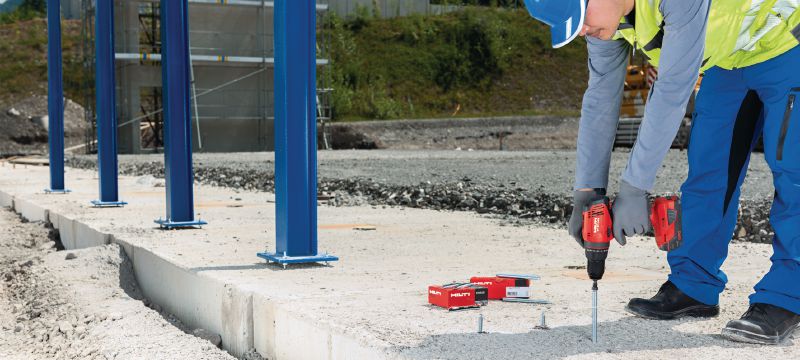

- Anchoring steel structures (e.g. racking, guard rails, fences and gates)
- Anchoring items along roads and in tunnels (e.g. crash and noise barriers, overhead catenary systems)
- Anchoring in industry (e.g. machinery, elevators, cranes and industrial equipment)
- Anchoring at the edge of slabs or on narrow supports (e.g. beams, balconies)
- Anchoring curtain wall facades
For approval or certificate information, please see individual items.
