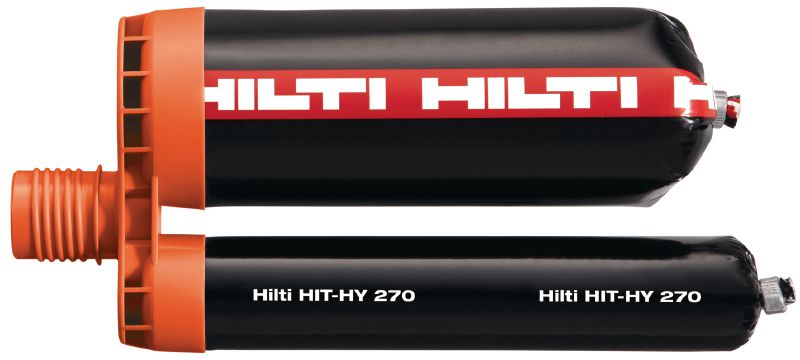

HIT-HY 270 Adhesive anchor
Ultimate-performance injectable hybrid mortar with approvals for fastening and retrofitting in hollow and solid masonry
- Base materials: Masonry (hollow), Masonry (solid)
- Base material condition: Dry, Wet
- Approvals / test reports: ETA, Fire
Customers also searched for resin, chemfix or chemical anchor.
Choose options
Content per can/cartridge
- 330 ml
- 500 ml
Pack size
- 1 pc
- 20 pc
Quantity
Packs
Total Pieces
1
Discounted net
From £50.20
Technical Data
Base materials
Masonry (hollow), Masonry (solid)
Base material condition
Dry, Wet
Approvals / test reports
ETA, Fire
Fire resistance
Yes
PROFIS software
Yes
Anchoring elements
HIT-IC internally-threaded rods, HIT-SC mesh sleeves, HIT-S mesh sleeves, HIT-V threaded rods
Environmental conditions
Dry indoor, Indoor with temporary condensation, Outdoor (more than 1 km from coast)
Cleaning procedures
Manual cleaning
Storage and transportation temperature range
5 - 25 °C
In-service temperature – range
-40 - 80 °C
Free of styrene
Yes
Type of fastening
Pre-fastening, Through-fastening
Documents
Features & Applications
Features
- Seismic ETA masonry approval, new TR053 and technical data available – significantly increases your flexibility when designing steel-to-masonry connections
- Simplify code-compliant design – design fastenings in masonry, including under seismic loads, with greater speed and ease using the PROFIS Engineering software suite
- Compatible with HIT-SC composite sleeves for use in hollow base materials – offering greater flexibility through use of multiple sleeve combinations and also minimizing mortar waste by allowing more accurate dosing
- On-site anchor testing available – request Hilti’s on-site anchor testing service for verification of both tensile and shear loads in both horizontal and vertical directions
Applications
- Fastening structural steel to hollow and solid masonry
- Cost-effective seismic retrofitting and structural strengthening of old masonry walls
- Refurbishment and renovations
- Heavy bracing of fixtures to insulated materials – such as sunshades
- Fastening glass balustrade assemblies
For approval or certificate information, please see individual items.
