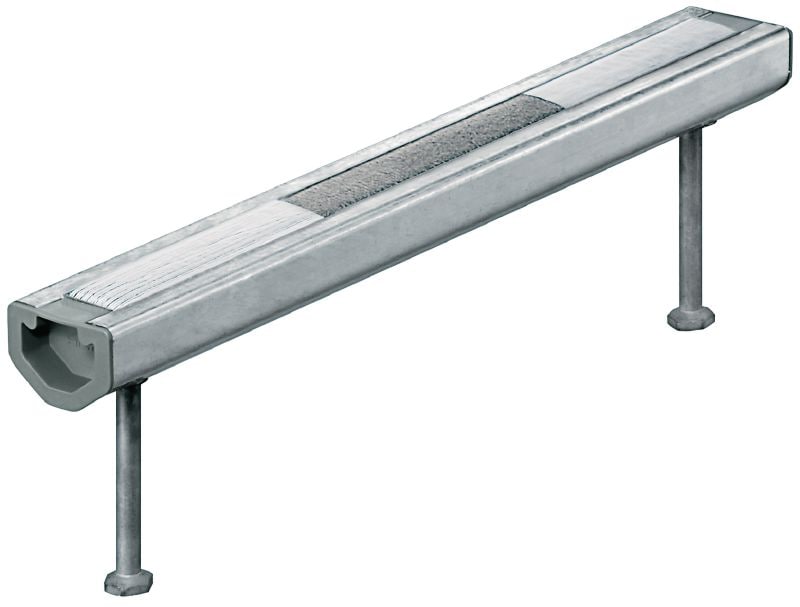

HAC cast-in anchor channel

A.-Channel HAC-50 106/200 F #2122537

Configurator
Technical Data
Documents
Features & Applications
Related Products
Cast-In
HAC (76103)
35965.tif
Cast-In
HAC-50 (82915)
HAC_50 (76104)
HAC-50 (82914)

Cast-in anchor channels in standard sizes and lengths with the regulatory approvals needed for virtually any challenging project

  • Material, corrosion: Carbon steel, HDG (hot-dip galvanised)/sherardised
  • Channel profile: HAC-50
  • Length: 200 mm

Customers also searched for cast in channel or anchor channel.

Choose options

Channel profile
  • HAC-50
Length
  • 200 mm
Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
£9,558.00
£21.24 / 1 Piece

Technical Data

Details

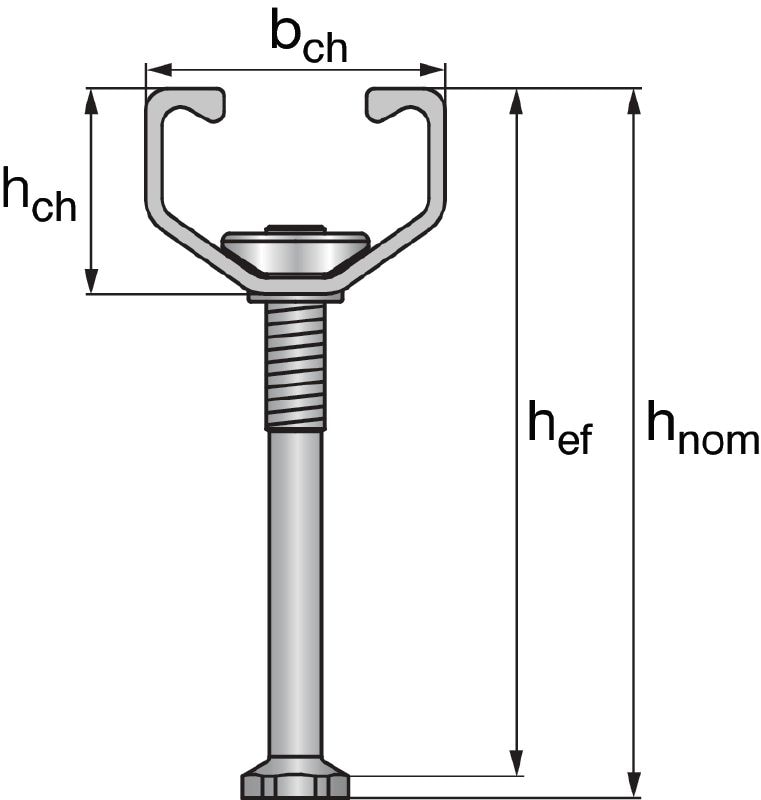

Technical illustrations
Material, corrosion
Carbon steel, HDG (hot-dip galvanised)/sherardised
Channel profile
HAC-50
Length
200 mm
Standard embedment depth
106 mm
Anchor distance
150 mm
PROFIS software
Yes

Documents

Approval document
Technical information
Declaration of performance
Operating Instruction
pdf ICC-ESR 3520 for HAC-V Anchor Channel Systems in Cracked and Uncracked Concrete incl. LABC and FBC Supplement (Aug. 2025), English [ 3.7 MB ]
pdf ETA 11/0006 Hilti HAC(-V) anchor channel, English, German, Polish [ 14.5 MB ]
pdf ETA 11/0006 for HAC cast-in anchor (ETAG -, Option -), English [ 6.9 MB ]
pdf ETA_11_0006_HAC_Anchor_Channels, German [ 6.9 MB ]

Features & Applications

Features

  • High-performance solution – designed for challenging loads and design parameters
  • Approved for static, fatigue, seismic and fire loading
  • Customisable – options available for virtually any specification
  • Low-energy manufacturing – cast-in anchor channels can contribute to environmental certification of construction projects
  • High-precision manufacturing

Applications

  • Curtain wall façades (e.g. fixing curtain wall elements with brackets)
  • Elevators (e.g. fixing guiderails, sliding doors or divider beams)
  • Projects with high environmental standards
  • Building appliances (e.g. heating, ventilation)
  • Power plants
