HAC-C-P L Hot-rolled anchor channels

A.-Channel HAC-C-P 50L 300 F #2308289

Configurator
Technical Data
Documents
Features & Applications
Related Products
L122599_v2 (211525)
L122584_v1 (211523)
L122595_v1 (211518)
L139294_cropped (207036)
L139296_cropped (207034)
L139297_cropped (207035)

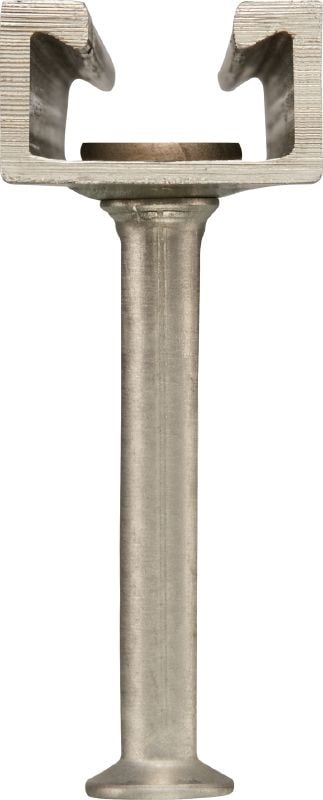

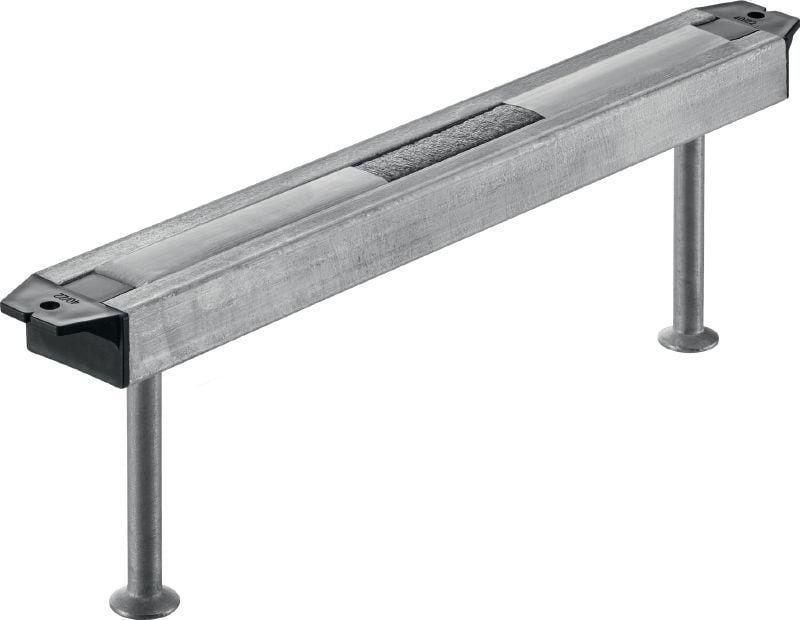

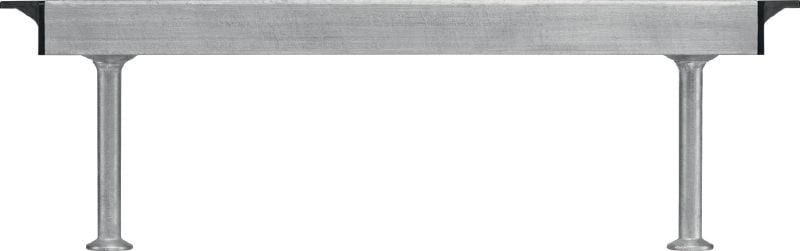

High performance hot-rolled cast-in anchor channels in standard sizes and lengths suitable for a wide range of applications

  • Material, corrosion: Carbon Steel, mechanically galvanised, Stainless steel, A4
  • Channel profile: HAC-C-P 50L
  • Length: 300 mm

Choose options

Channel profile
  • HAC-C-P 50L
Length
  • 300 mm
Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
£26.42
£26.42 / 1 Piece

Technical Data

Material, corrosion
Carbon Steel, mechanically galvanised, Stainless steel, A4
Channel profile
HAC-C-P 50L
Length
300 mm
Standard embedment depth
148 mm
Anchor distance
250 mm
PROFIS software
Yes

Documents

Technical information
Sustainability Documentation
Operating Instruction
pdf Technical Datasheet HAC-C-P-L Anchor Channels , English [ 1.3 MB ]
pdf HAC_HAC-C(-P) Field_Fixes, English [ 44.5 MB ]

Features & Applications

Features

  • Upgraded load capacity – higher static tension and shear values mean you can specify the same cast-in channels for virtually any loading
  • Designed for high-speed installation – end caps with nail holes, one-pull filler foam and many other features help to make these anchor channels faster and easier on-site
  • Engineering and software support – you can use Hilti PROFIS Anchor Channel software and our engineering services team to streamline your design work
  • Available in stainless steel and hot-dip galvanised versions – helping to provide corrosion protection as needed for specific environmental conditions

Applications

  • Fastening curtain wall façade brackets to concrete slabs
  • Fastening overhead MEP installations and equipment
  • Fastening infrastructure in tunnels, including safety equipment and overhead lines (curved and stainless steel versions available)
  • Creating adjustable, retrofittable fastening points in concrete
  • Fastening in lift shafts, such as fixing guiderails, sliding doors or divider beams
