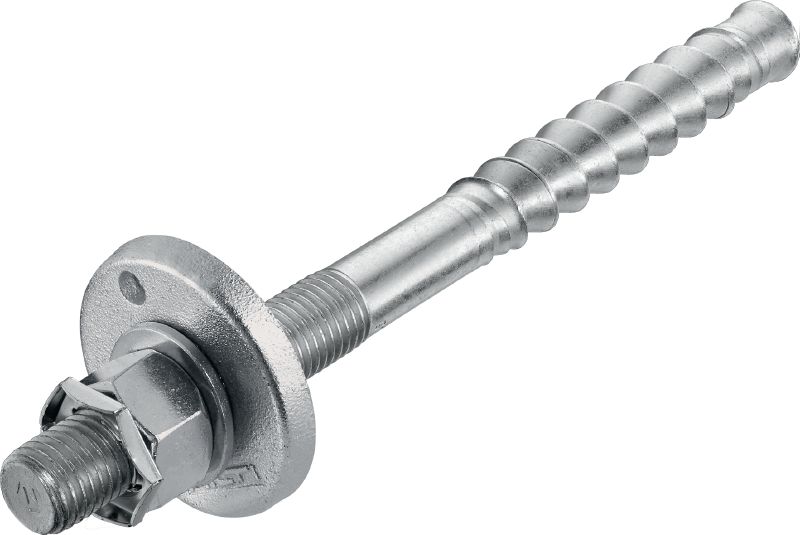

HIT-Z-R-D TP SS Dynamic anchor rod

Configurator
Technical Data
Documents
Features & Applications
Related Products
HIT-Z-D TP, HIT-Z-R-D TP (82237)

High-performance dynamic anchor rod for injectable hybrid anchors (A4 stainless steel), through and presetting

  • Material, corrosion: Stainless steel, A4
  • Environmental conditions: Coastal areas/roads with de-icing salt, Outdoor (more than 1 km from coast), Outdoor (more than 1 km from coast), Outdoor with heavy industrial pollution
  • Base materials: Concrete (cracked), Concrete (uncracked)

Choose options

Material composition
  • Steel, A4
Anchor size
  • M16
Anchor length
  • 175 mm
  • 240 mm
Head configuration
  • Externally threaded
Pack size
  • 8 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From £312.40

Technical Data

Material, corrosion
Stainless steel, A4
Environmental conditions
Coastal areas/roads with de-icing salt, Outdoor (more than 1 km from coast), Outdoor (more than 1 km from coast), Outdoor with heavy industrial pollution
Base materials
Concrete (cracked), Concrete (uncracked)
PROFIS software
Yes
Approvals / test reports
ETA

Documents

Approval document
Brochure
Declaration of performance
Sustainability Documentation
Operating Instruction
pdf ETA-19/0802 HIT-HY 200-A/R V3 with HIT-Z(-R)-D TP Jul-2023 (dynamic), English, German, Polish [ 6.7 MB ]
pdf ETA-15/0296 HIT-HY 200-A/R V3 with HIT-Z(-R)-D TP Anchor Jul-2023, English, German, French, Polish [ 14.1 MB ]

Features & Applications

Features

  • Suitable for dynamic loading subject to fatigue and shock
  • High loads in cracked concrete and seismic applications according to ETA C2 approval
  • No hole cleaning required (above 5°C / 41°F) with HIT-HY 200 adhesive anchor
  • Optimal load transfer through special washer and filling of annular gap
  • Professional software and services for designing fastenings subject to fatigue loads

Applications

  • Heavy-duty fastenings for dynamic loads in uncracked and cracked concrete (e.g. robots, machinery, cranes, elevators)
  • Outdoor applications or fastenings in corrosive environments
  • Seismic anchoring applications

For approval or certificate information, please see individual items.
