MFT-S2S UI M bracket

Configurator
Technical Data
Documents
Features & Applications
Related Products
MFT-S2S UI M (88052)

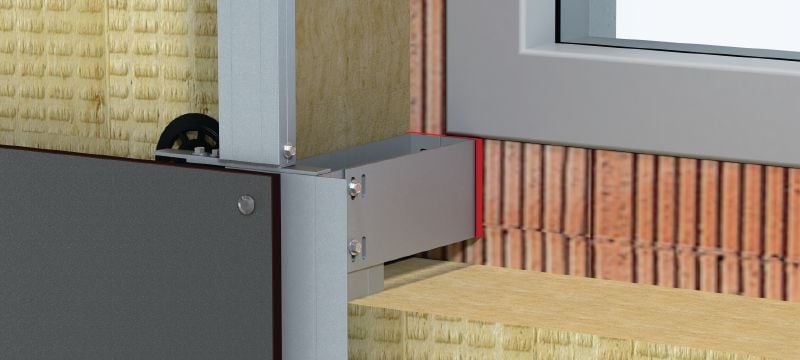

MFT-S2S UI M - Application (88195)
S2S full application (88194)
MFT-S2S UI M (87665)

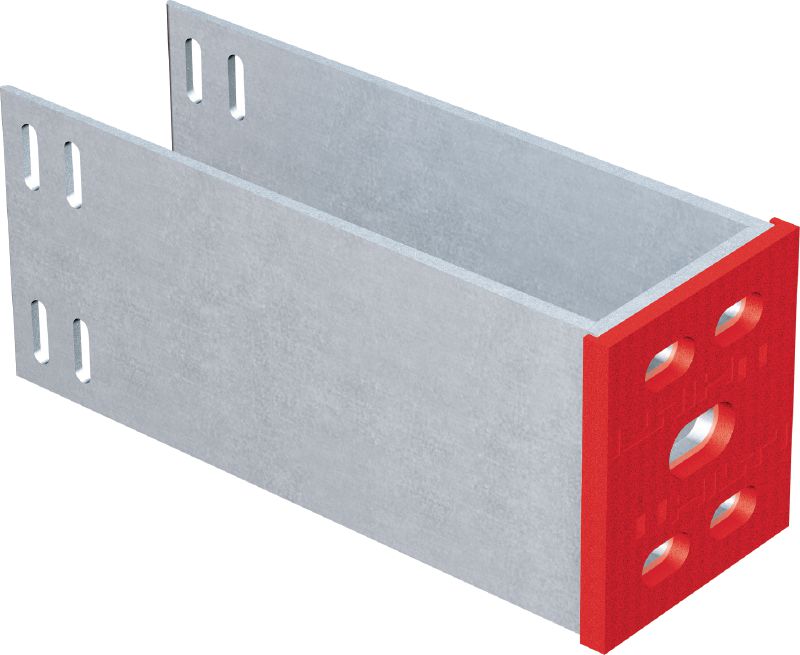

U-shaped medium bracket as central part of the floor-spanning S2S system

  • Material composition: EN AW-6063 T66, Polypropylene (PP)
  • Insulation material: Polypropylene
  • Width: 74 mm

Customers also searched for Helping Hand Bracket, Rainscreen Cladding or Ventilated Facade.

Choose options

Length
  • 80 mm
  • 100 mm
  • 120 mm
  • 140 mm
  • 160 mm
  • 180 mm
  • 200 mm
  • 240 mm
  • 260 mm
  • 280 mm
  • 300 mm
Pack size
  • 20 pc
  • 40 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From £364.00

Technical Data

Details
Technical illustrations
Material composition
EN AW-6063 T66, Polypropylene (PP)
Insulation material
Polypropylene
Width
74 mm
Height
85 mm

Documents

Technical information
Approval document
Declaration of performance
Sustainability Documentation
Operating Instruction
pdf MFT-S2S-1L-adhesive-rivets-screws, English [ 2.5 MB ]
pdf MFT-S2S-2L-hangers-undercut anchors, English [ 2.5 MB ]
pdf MFT-S2S-1L-hidden-clamps, English [ 2.6 MB ]
pdf MFT-S2S-1L-clamps-stainless-steel, English [ 2.6 MB ]

Features & Applications

Features

  • Total system solution – from Hilti you get optimised tools, consumables and services for every step of ventilated façade installation
  • Pre-assembled thermal pad for reduced thermal conductivity
  • Polymer isolator prevents corrosion between aluminium and concrete
  • Engineering support available – contact your local Hilti team for project-specific advice on optimising the ventilated façade substructure
  • Multiple fastening options – can be installed using suitable anchors or screws

Applications

  • U-shaped bracket as a central part of the floor-spanning S2S system, installing ventilated facades independent of the wall condition between the slabs
  • Suitable for all facade cladding types
  • Allows precise installation and alignment of S2S profiles
  • Elongated holes to allow for expansion of the S2S profiles

For approval or certificate information, please see individual items.
