X-MW MX wire hanger system

Configurator
Technical Data
Documents
Features & Applications
Related Products
L125956 (226827)
L125959 (226825)
L125961 (226828)
L144761 (2206213)
L144764 (2206249)
L144765 (2206267)
L144781 (2206101)
L144791_cropped (2206540)
L144799_cropped (2206630)
L144804_cropped (2206691)
L144814 (2206397)

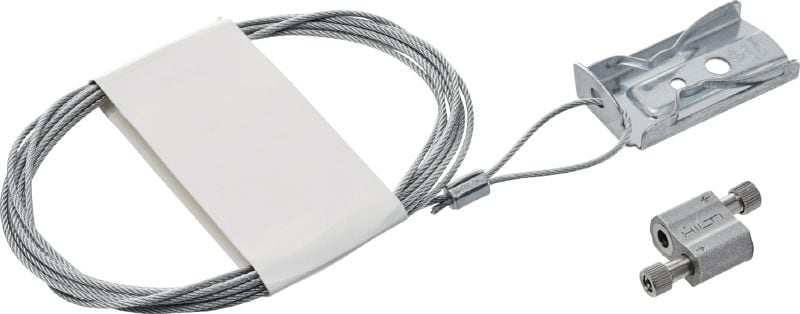

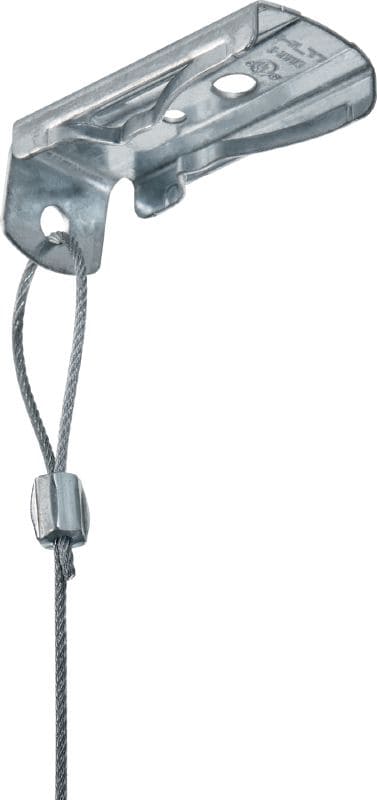

Wire hanger system for spiral HVAC ducting and lighting applications, installed using battery-actuated fastening tools

  • Material: Carbon steel

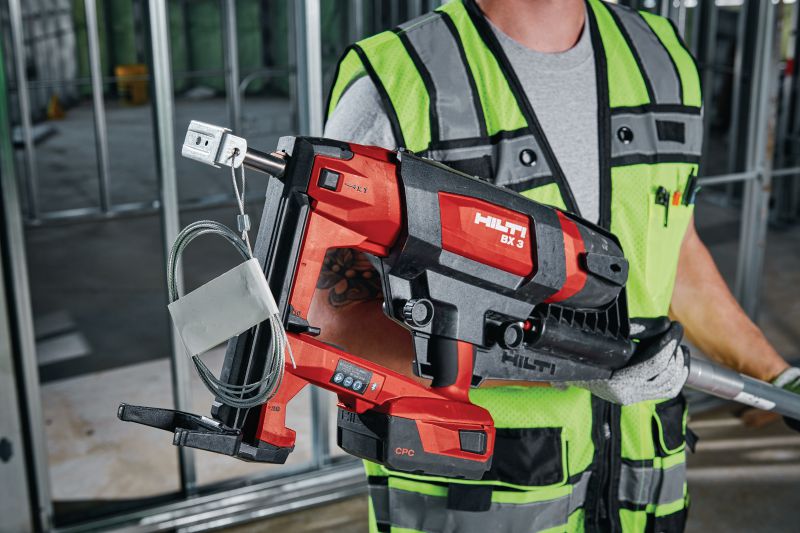

  • For use with (tools): BX 3, BX 4-22
  • Base materials: Concrete, Steel
ultimate

Choose options

Pack size
  • 20 pc
  • 30 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From £150.00

Technical Data

Material
Carbon steel
For use with (tools)
BX 3, BX 4-22
Base materials
Concrete, Steel
Approvals
ICC ES, UL
Corrosion protection
Galvanic zinc-plated
Environmental conditions
Dry indoor
For use with (tools) (global)
BX 4-22, BX 3
Product class
Ultimate

Documents

Technical information
Approval document
Certificate
Operating Instruction
pdf X-MW, X-MW ALH Data Sheet, English [ 1.8 MB ]

Features & Applications

Features

  • Shorter installation time – wire suspensions are a faster alternative to threaded rod

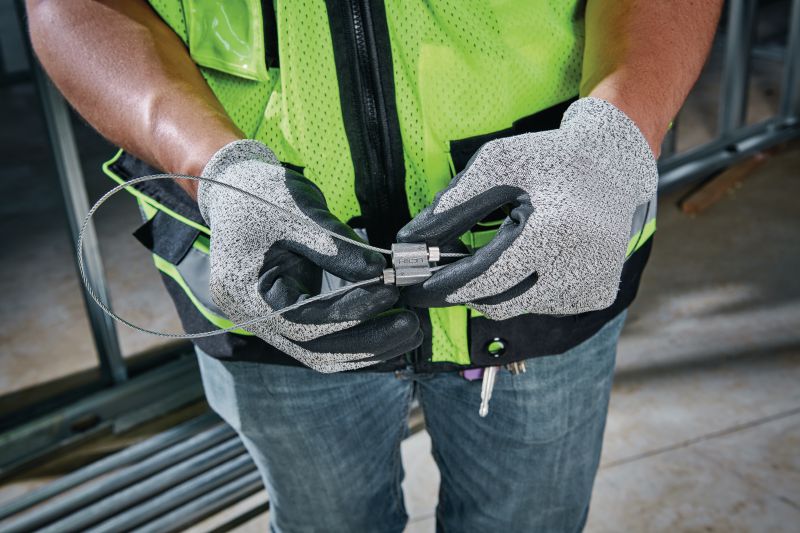

  • Easier to adjust – self-closing wire lock can be adjusted tool-free, making leveling, retrofitting and long drop lengths much simpler
  • Aesthetics – wire rope suspension is a discreet installation method for exposed building services and open soffits
  • Combustion-free operation – no gas cans or powder cartridges to shop and dispose of and no certification required when used with fully electric BX fastening tools,

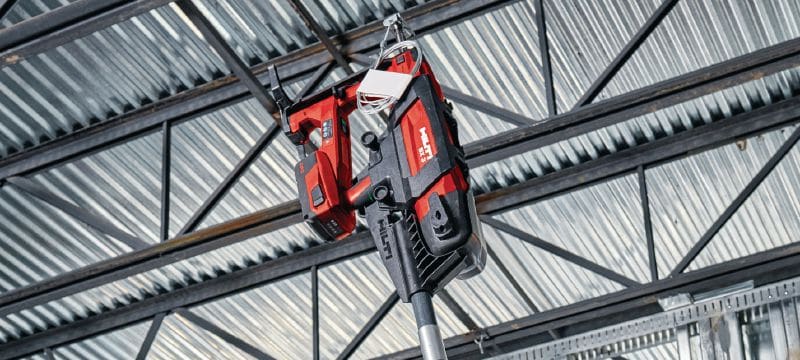

  • Can be fastened while standing on the floor using the BX pole tool – safer method of installation avoiding lifts and ladders

Applications

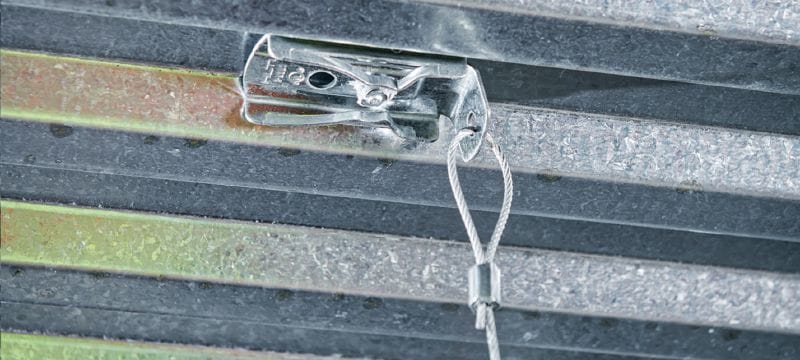

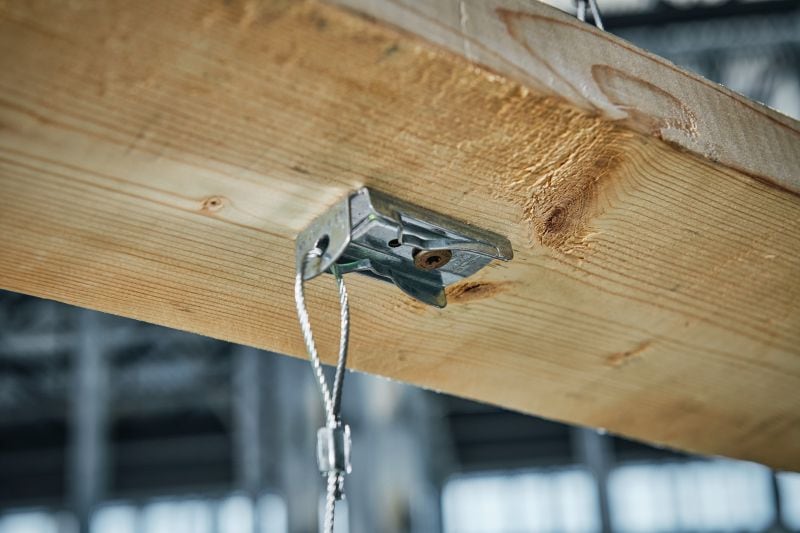

  • Suspending spiral HVAC duct from concrete, wood and metal deck

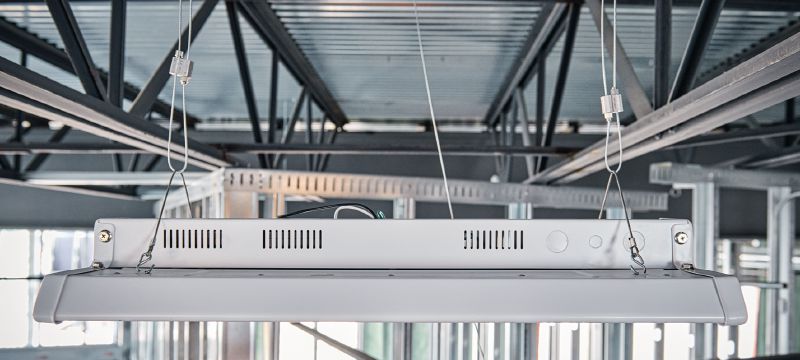

  • Suspending electrical lighting from the ceiling
  • Suspending security attachments (secondary attachment point to work if first attachment point fails)
  • Up to 30 lbs (13.5 kg) allowable load values
  • Suitable for use in dry, indoor environments only

For approval or certificate information, please see individual items.
