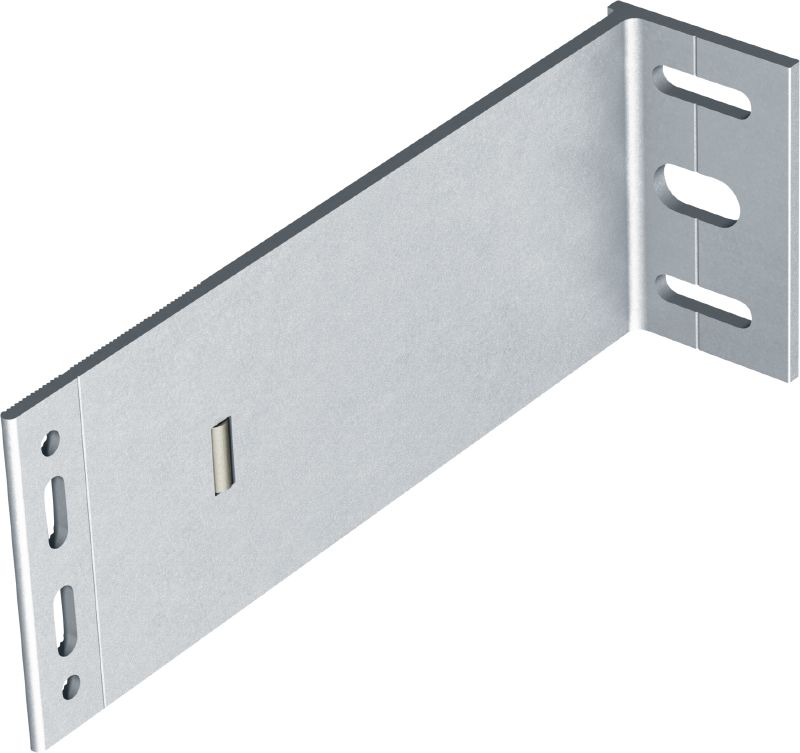

MFT-FOX V M bracket
New productItem #r11664954

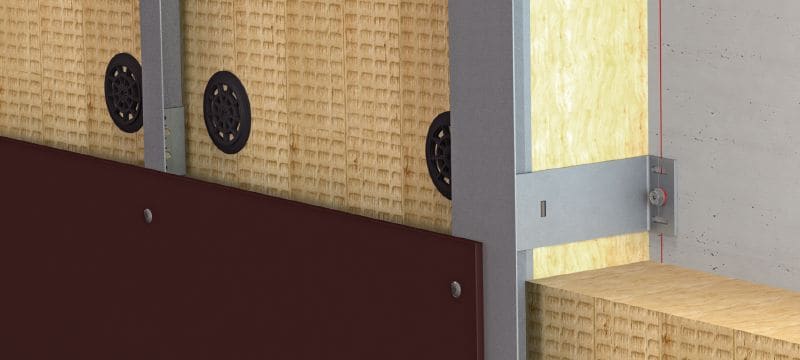

Versatile wall bracket for installing rainscreen façade substructures
- Length: 134 mm
- Material composition: EN AW-6063 T66
- Width: 46 mm
Share
Features
- Labour saving – optimised bracket design and innovative fastening solutions help to lower your total cost of installation
- Easier installation – optimised helping hand and clearer markings to simplify bracket fastening and rail alignment
- Multiple fastening options – can be installed using suitable anchors, screws or direct fastening (DX)
- Pre-assembled bracket – arrives on-site ready to fasten to the wall or slab
- Engineering support available – contact your local Hilti team for project-specific advice on optimising the ventilated façade substructure
Applications
- Fastening rainscreen façade substructure to concrete, masonry, metal studs and wood
- Mounting façade substructures on the primary structure (helping hand bracket)
- Installing vertical support rails
- Suitable for all façade cladding
Technical Data
Documents
-
- MFT-FOX VI-1L-wood, English, [ 4 MB ]
- MFT-FOX VI-1L-bolts, English, [ 3.2 MB ]
- MFT-FOX VI-1L-clamps-stainless steel, English, [ 3.7 MB ]
- MFT-FOX VI-1L-hidden clamps, English, [ 3.8 MB ]
- MFT-FOX VI-2L-hangers-undercut anchors, English, [ 3.6 MB ]
- MFT-FOX VI-1L-adhesive-rivets-screws, English, [ 3.9 MB ]
